| Specification | Industrial Diode Laser Module |
| Wavelength | 405nm, 450nm, 488nm, 520nm, 635nm, 650nm, 660nm, 670nm, 685nm, 705nm, 730nm, 780nm, 808nm, 830nm, 850nm, 905nm, 940nm, 980nm |
| Output Power | 1, 5, 10, 20, 35, 50, 80, 100, and 130mW (Custom options available) |
| CDRH Class | I, II, IIIa, IIIb |
| Aperture | Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm |
| Divergence | 0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad |
| Circular Beam Size | Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m) |
| Elliptical Beam Size | 1x2mm(@1m), 2x4mm(@2m), 3x6mm(@5m), 5x10mm(@10m), 8x16mm(@20m) |
| Operating Current | <300mA |
| Input Voltage | 3.0V, 5.0V, 9.0V, 12.0V, 24.0V |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 85°C |
| MTBF | >10,000 hours |

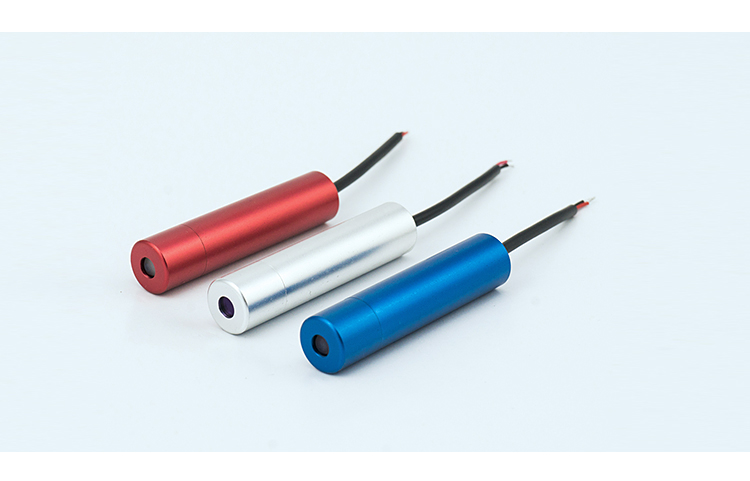

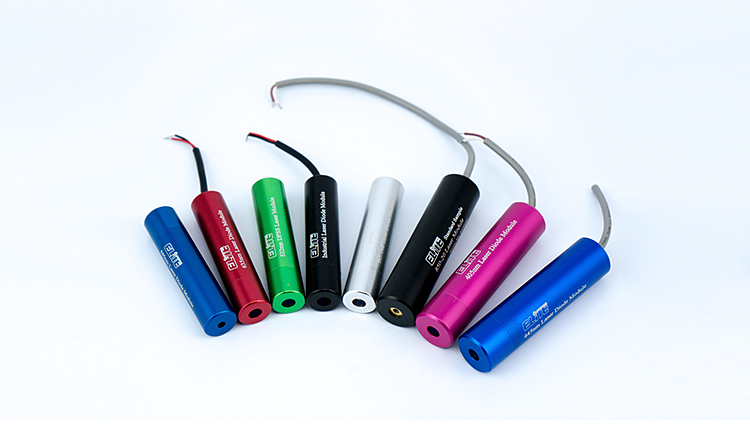

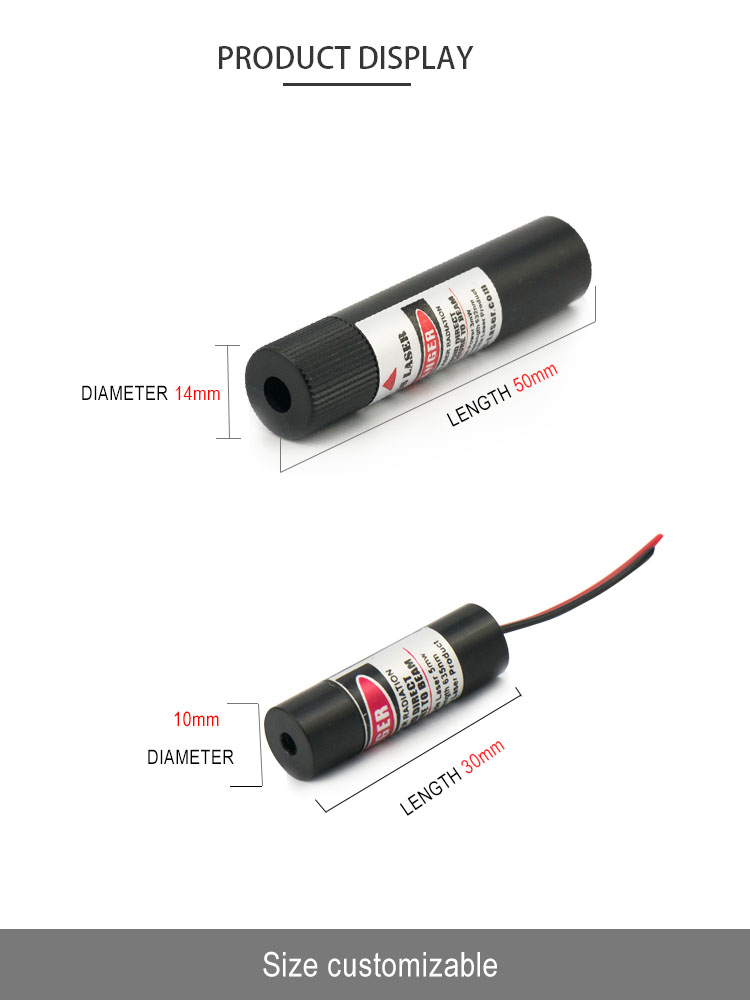

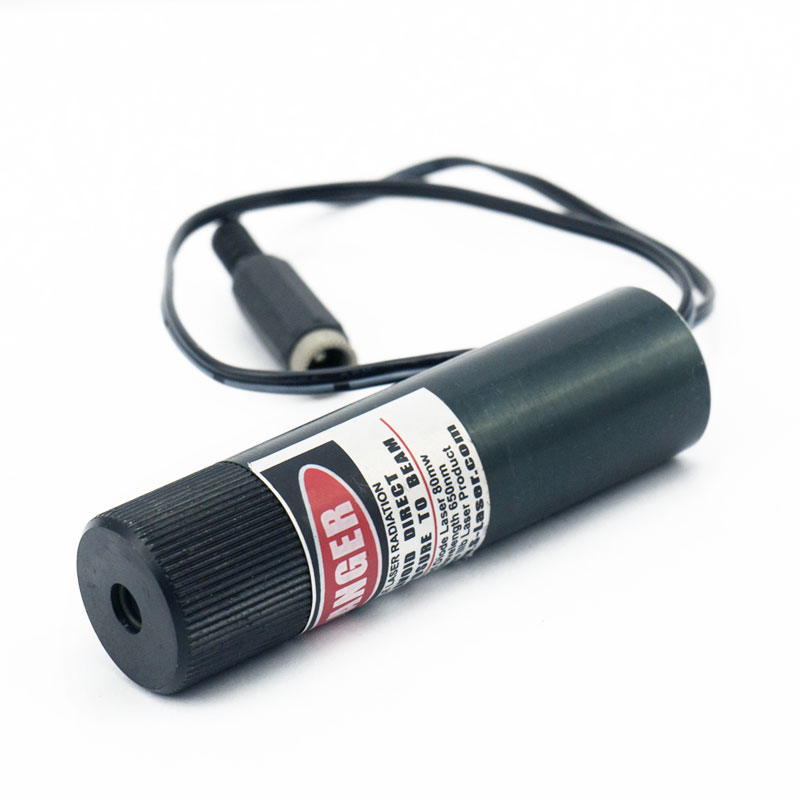

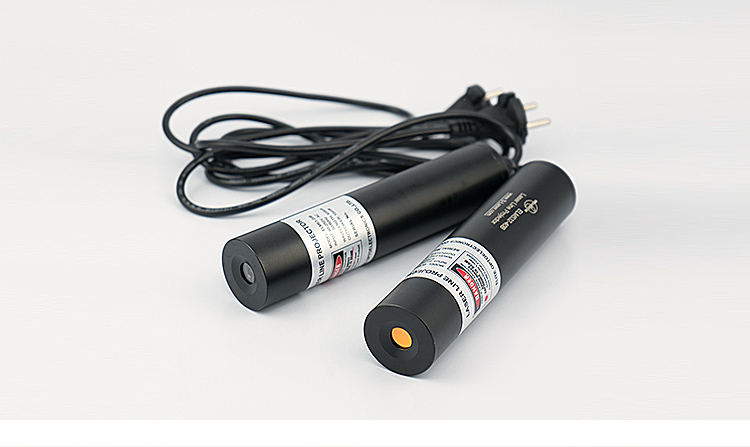

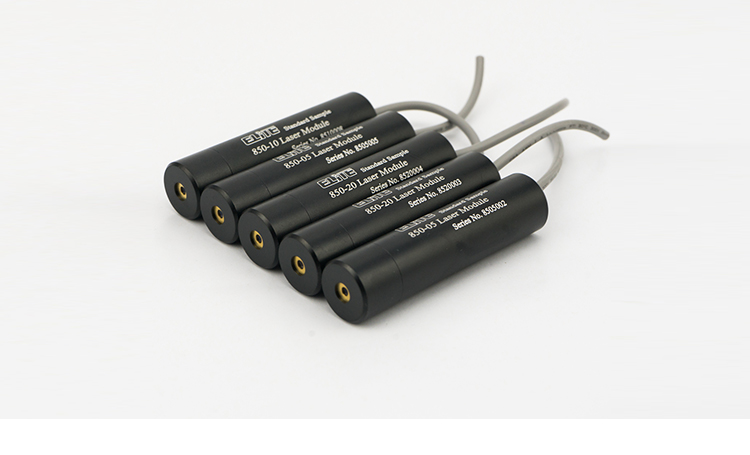

Our mini laser diode module features extraordinary performance and a unique compact design. Our experienced engineering team successfully balances reliability and design for systems where size and weight are highly limited. The mini laser diode module remains one of the top-selling items in our lineup.
1. Small beam size starting from 5um

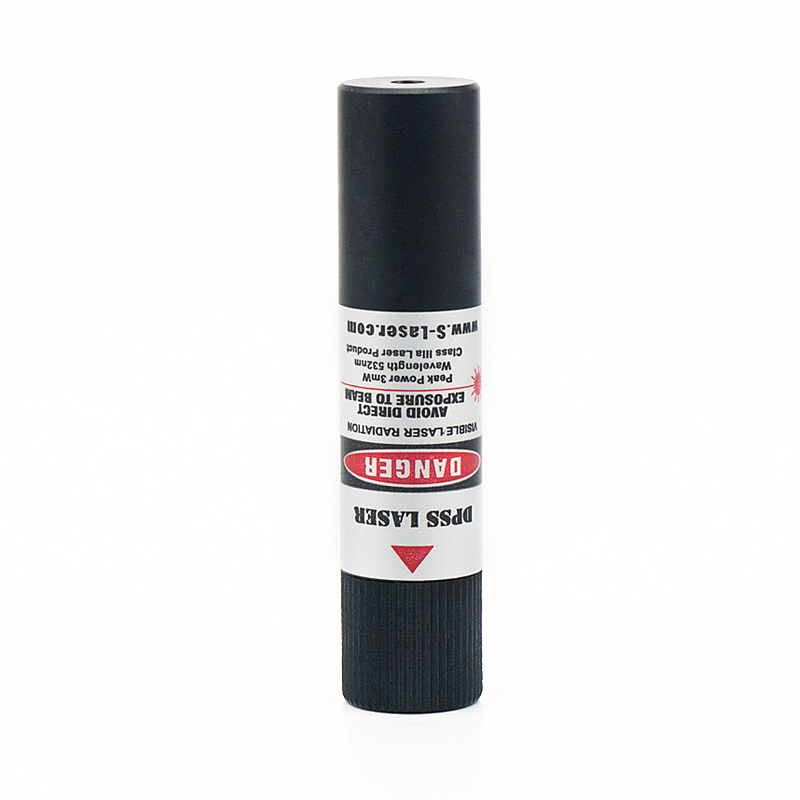

2. Compact and lightweight structure
3. Outstanding long-term stability
4. High operational reliability
5. High power density emission
6. Water-resistant housing (IP55~IP65)
We offer ultra-small beam laser diode modules, specifically designed for high-precision instruments and equipment. Widely used in precise positioning and high-precision detection fields.
A: We offer a wide range of wavelengths, including UV, visible, and infrared options ranging from 405nm up to 980nm, such as 450nm, 520nm, 635nm, 650nm, 808nm, and 940nm.
A: Yes. Output power options include 1mW, 5mW, 10mW, 20mW, 35mW, 50mW, 80mW, 100mW, and 130mW, with custom adjustments available. Beam sizes can also be optimized for either circular or elliptical shapes according to application requirements.
A: The ultra-small beam laser diode module is specially designed for high-precision instruments and equipment. It is widely used in precise positioning, scientific research, alignment, and high-precision industrial detection.
A: Yes, our laser diode modules feature robust protective structures with IP55 to IP65 water-resistant ratings, making them reliable for various demanding industrial environments.
A: These modules operate efficiently within a temperature range of -20°C to 60°C and can be safely stored from -40°C to 85°C. They feature an MTBF (Mean Time Between Failures) of greater than 10,000 hours.
