Products Description
Fiber laser cutting has many advantages compared with traditional CNC metal cutting solutions. Advantages mainly include: higher cutting precision and accuracy, higher quality cut edge, narrower incision width, smaller heat-affected zone, less material deformation, less material pollution and waste, lower maintenance and repair costs, and higher operator safety. Compared with the traditional CNC metal sheet and tube cutting machine, the fiber laser cutter can deal with various designs with higher precision and efficiency. Completely controlled by CNC, the fiber laser metal cutting machine can produce complex parts with high tolerance repeatedly and consistently. Laser cutting can also produce high-quality cut edges, usually without further cleaning, processing, or finishing, thus reducing the need for secondary processing. As a leading manufacturer and supplier of fiber laser machines, we provide the best quality and factory price laser cutting machines for metal sheets and tubes, including stainless steel, carbon steel, aluminium, copper, galvanized sheet, mild steel, corten steel, silver, gold, etc.
Key Thermal & Structural Benefits
The low heat input of the fiber laser cutting machine minimizes the heating area and reduces the degree of thermal deformation. The non-contact nature of the CNC laser cutting process also reduces the risk of mechanical deformation. It is important especially for flexible or thin metal materials, and reduces the risk of material contamination. Due to tighter tolerances, narrower notch width, smaller heat-affected zone, and smaller material deformation, we can arrange the laser cutting parts more closely on the material. This compact design reduces the amount of material waste, thereby reducing material costs over time.
In the cutting process of fiber laser for general metal materials, due to the fast cutting speed, the thermal deformation of the parts is small, and the dimensional accuracy of the cut parts mainly depends on the mechanical accuracy and control accuracy of the worktable of the laser cutting machine. In the fibre laser cutting process, the high-precision cutting device and control technology are used, and the dimensional accuracy can reach the highest level.
| Serial Number |
Project Name |
Parameter |
| 01 |
Effective cutting range |
1500*3000mm |
| 02 |
Laser power |
1500W |
| 03 |
The center distance of the guide rail |
2000mm |
| 04 |
Y guide rail length |
3500mm |
| 05 |
X, Y-axis positioning accuracy |
±0.2mm/m |
| 06 |
X and Y axes |
±0.15mm/m |
| 07 |
X, Y axis maximum express |
6m/min |
| 08 |
Voltage |
220V/380V |
| 09 |
Wooden box packaging size (length, width, height) |
3600*600*700mm
740*570*1150mm |
Product Details

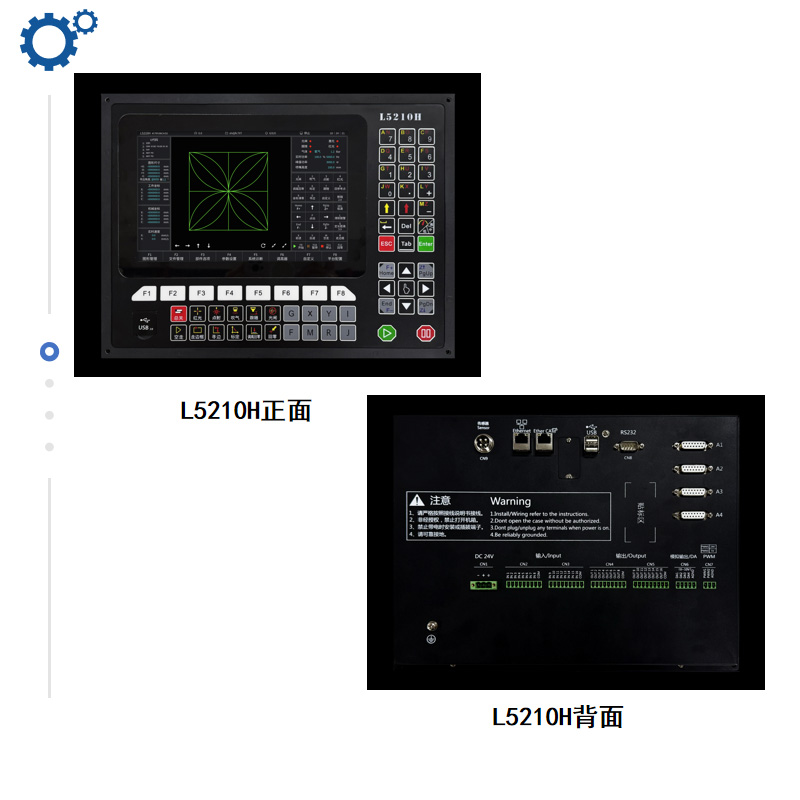

Shanghai Fangling L5210H
01. Chinese, English, Spanish, Portuguese, French, Russian, Danish, Korean, Japanese and other language menus, with one-click language switching.
02. In addition to Chinese and English, customers are required to provide language translation files, which can support most languages (except Thai).
03. 54 commonly used graphic libraries (including grid graphics), with the option to set sheet size and hole size. Supports EIA codes (G codes), including suffixes TXT, CNC, NC, MPG, B3, and other G codes.

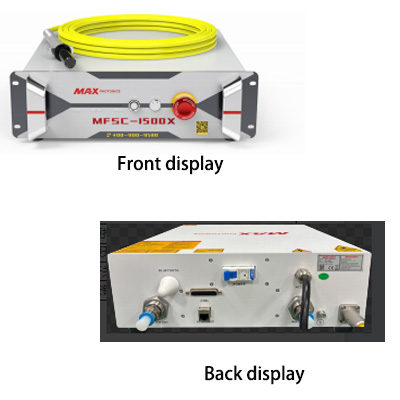

MAX Laser Generator
High stability, power saving, and basic maintenance-free advantages make it highly efficient. It can effectively reduce equipment usage costs and optimize the overall user experience.

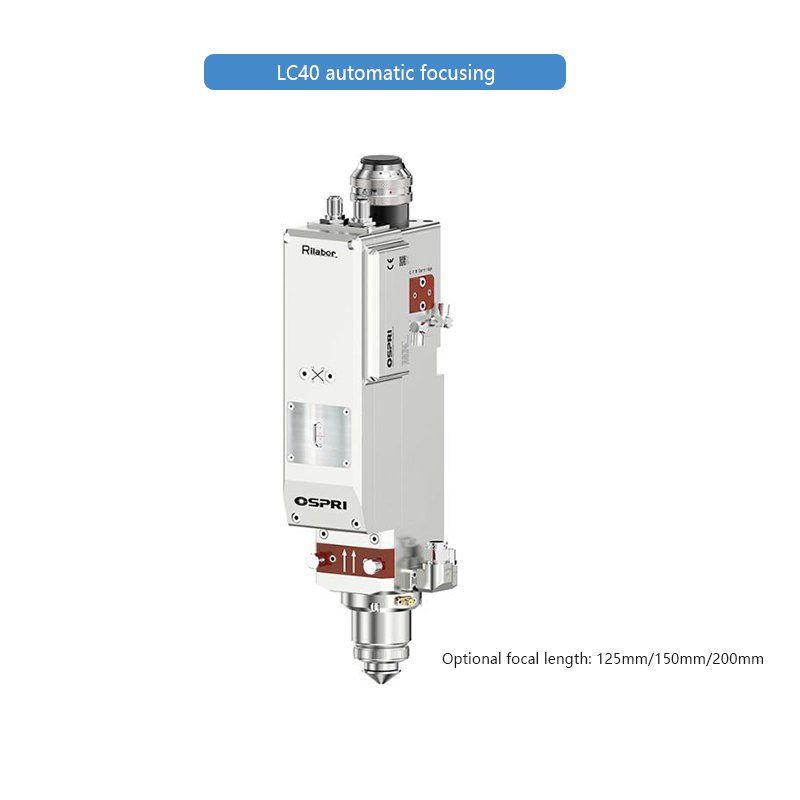

Laser Cutting Head with Autofocus
The autofocus laser cutter head has a built-in motor drive. The focus lens is driven by a linear mechanism to automatically change position within a specified range. Continuous focus can be set by the software to complete fast punching for thick sheets and cut sheets of different thicknesses from different materials.

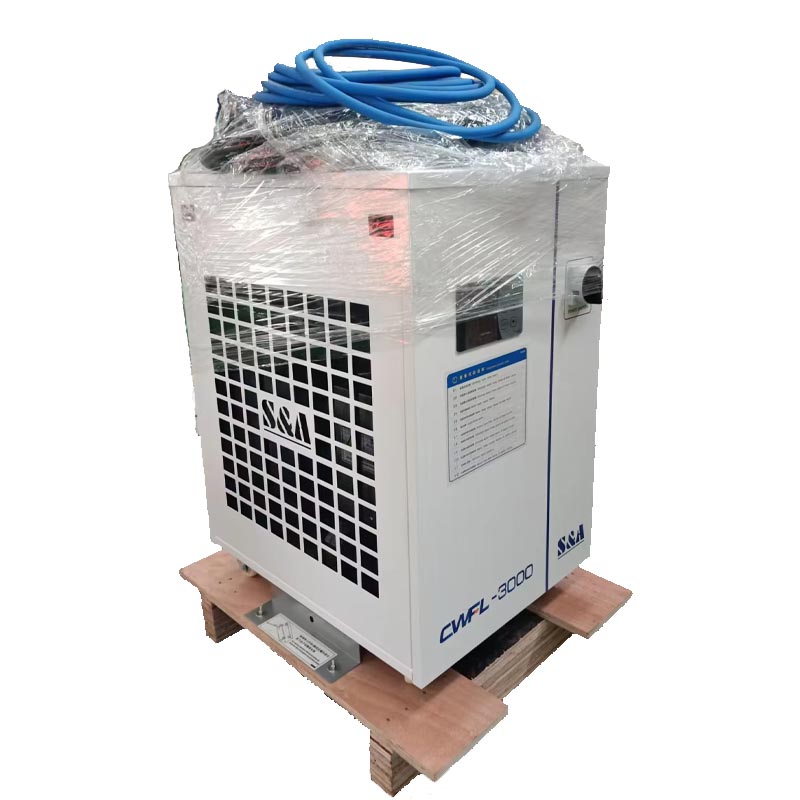

S&A Chiller
Composed of an internal circulation system and an external circulation system, to ensure the long-term stable operation of the laser!

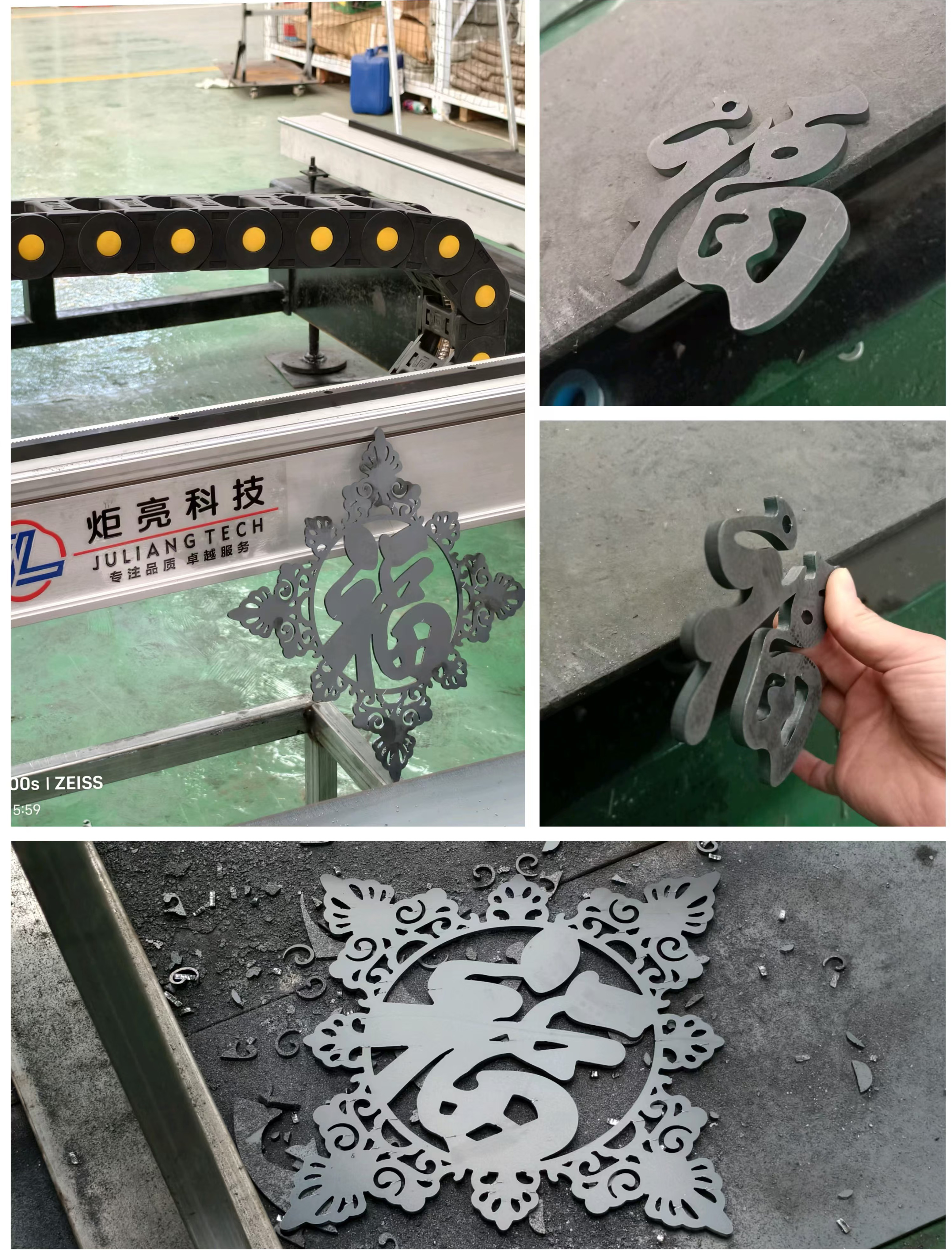

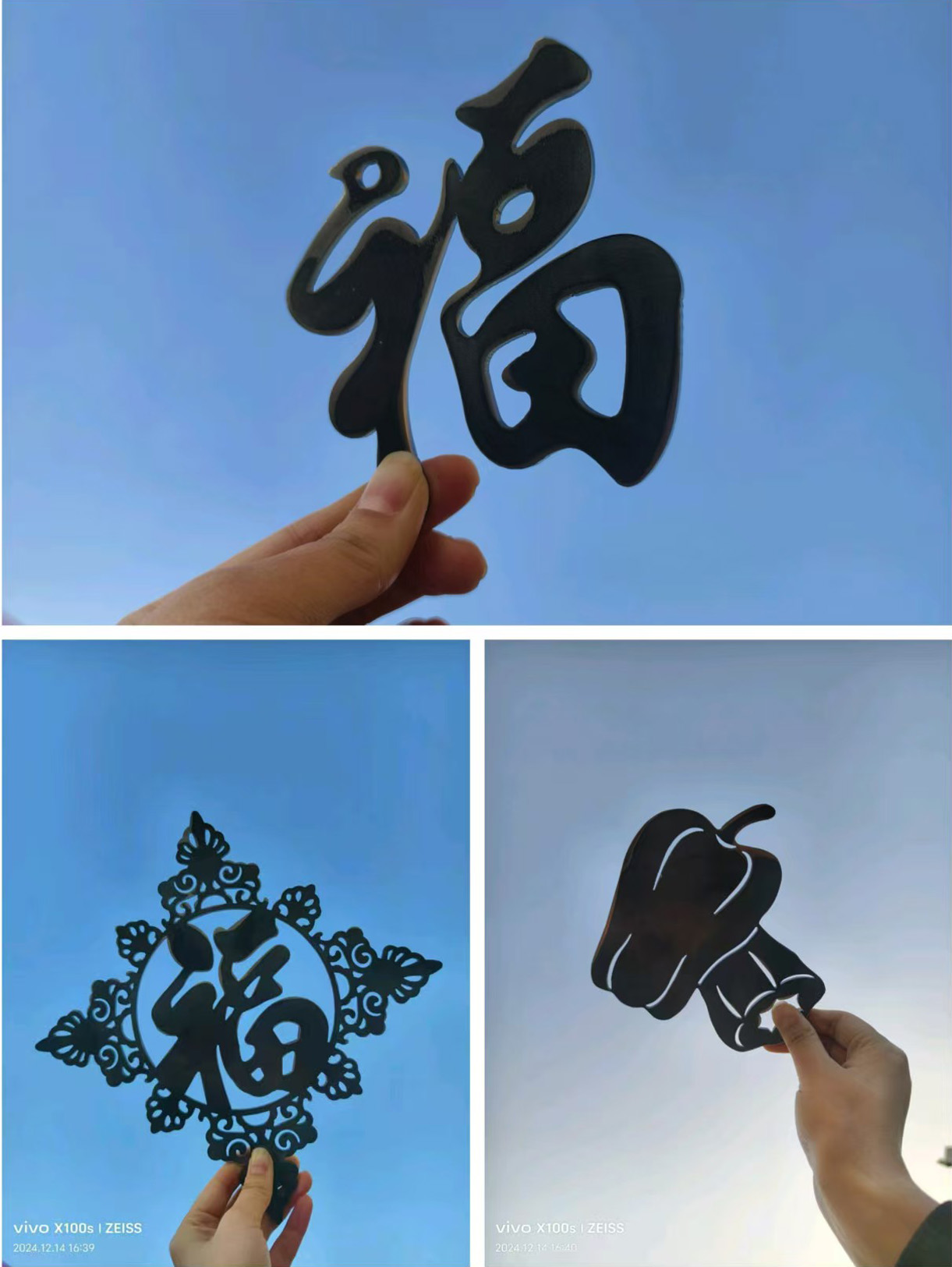

Cut Sample Diagram

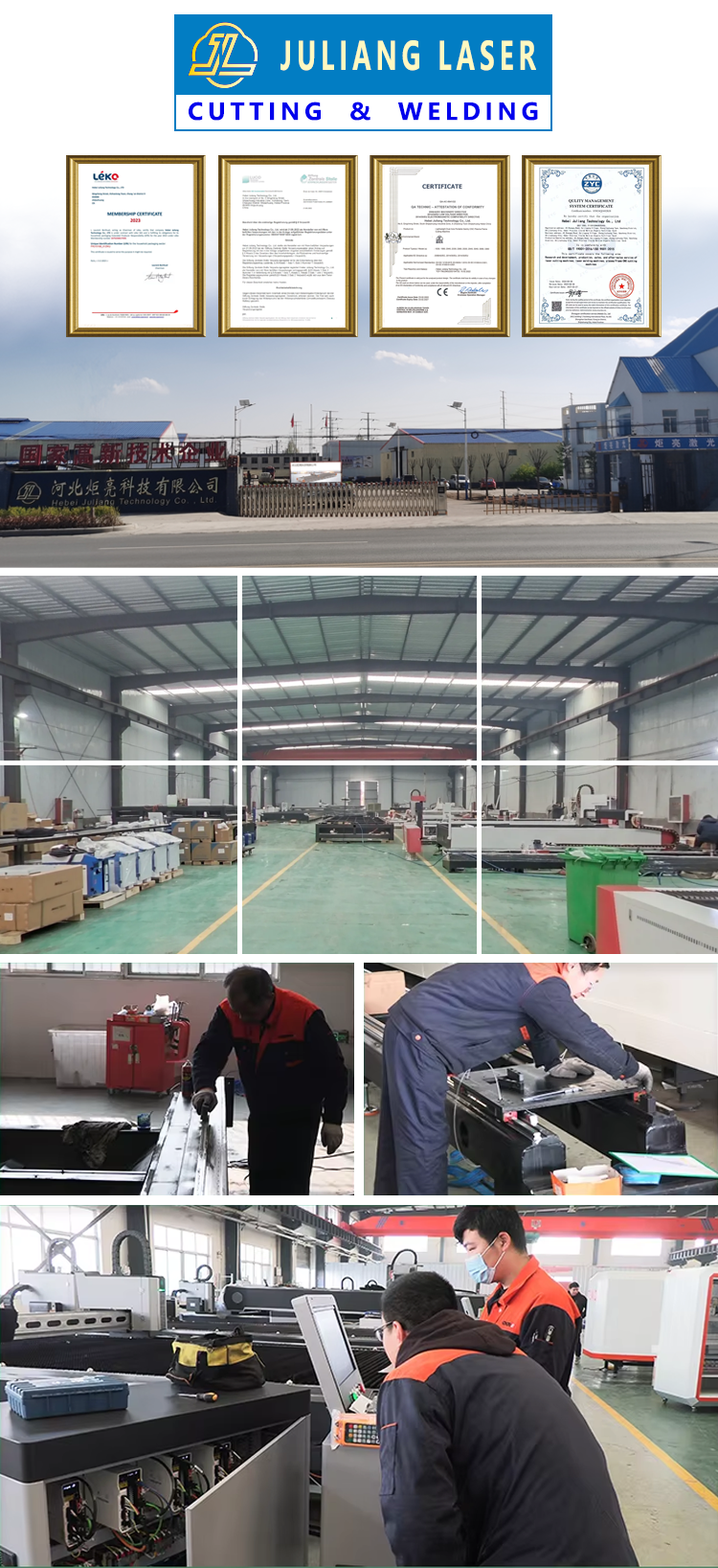

Workshop & Intelligent Manufacturing
Introduction to Laser Cutting Machine
The fiber laser cutting machine is an advanced equipment designed specifically for high-speed and high-precision cutting of metal materials. These machines use solid-state laser sources to transfer concentrated energy through optical fibers. They are suitable for cutting materials such as stainless steel, carbon steel, aluminum, brass, and copper. Industries such as automotive, aerospace, electronics, and metalworking rely on fiber laser machines for efficient and precise production.
The fiber laser cutting machine is equipped with a powerful laser generator, a stable motion system, and intelligent control software. Each machine can provide excellent cutting quality on thin and thick metal materials. Operators can easily integrate design files using standard CAD/CAM software. These machines have functions such as automatic focusing, closed protection system, and real-time monitoring to ensure safe and smooth operation. Enterprises can enjoy low operating costs, minimal maintenance, and a longer service life. Multiple models with different power levels and workbench sizes are offered to meet specific production needs.
FAQ
When the machine can’t work well, what should I do?
Sales assistance is online for 24-hours. They can check the problems with engineers and give you solutions as soon as possible.
What is the warranty policy for the laser cutting machine?
Our machine comes with a one-year warranty. If any problems occur with machine parts under "normal use," new machine parts will be sent by air for free. An operation CD and manual will also be offered along with the machine to ensure you can operate it easily.
What kinds of payment methods are accepted?
We accept T/T, Paypal, Western Union, or Trade Assurance orders.
Can you produce the product according to a customer's request?
Sure, we are professional manufacturers. Simply provide us with the technical drawing or your specific request for customization.
What metal materials can this fiber laser machine cut?
It is designed to cut a wide variety of metal sheets and tubes, including stainless steel, carbon steel, aluminium, copper, galvanized sheet, mild steel, corten steel, silver, and gold.
How does autofocus improve the cutting process?
The autofocus laser cutter head uses a built-in motor drive and linear mechanism to automatically change positions. This enables continuous focus adjustment via software, allowing for fast punching of thick sheets and efficient cutting of varied thicknesses.
