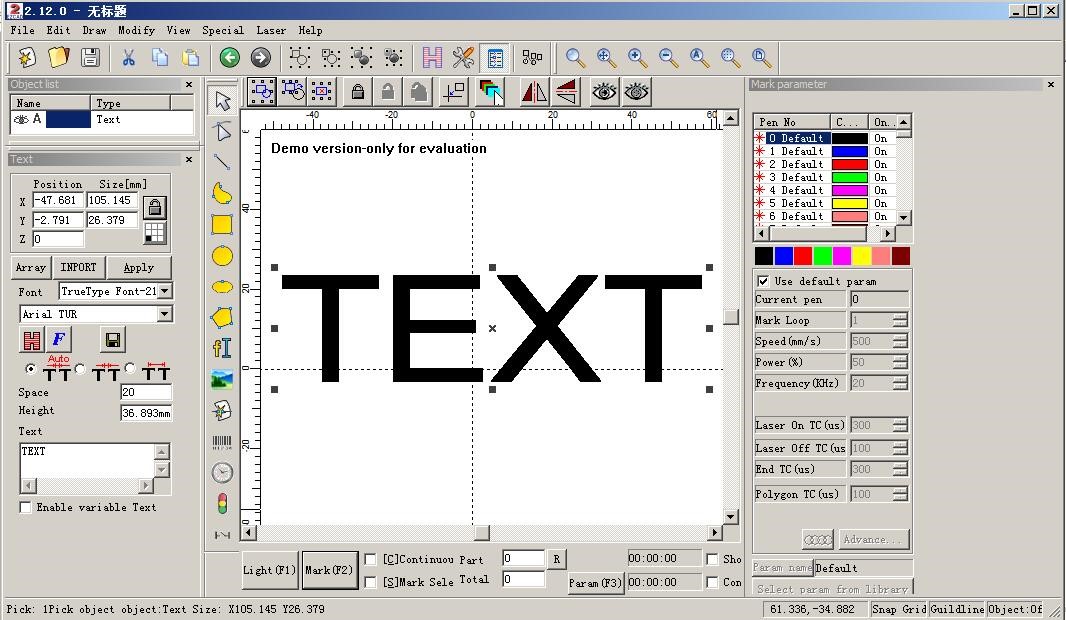

Support PLT, PCX, AL, DXF, BMP, JPG formats file compatible AutoCAD, CorelDraw, Photoshop, etc.
| Parameter | Specification Details |
|---|---|
| Laser power | 30W, 50W, 70W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Marking range | 110x110mm, 150x150mm, 200x200mm |
| Marking depth | 0.01~2mm (Depends on the material) |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content | Graphics, text, bar codes, two-dimensional code |
| Graphic format supported | bmp, png, ai, dxf, dst, plt |
| Working voltage | AC100-240V 50-60HZ |
| Working environment | Clean and dust free or dust less |
| Rated Power | ≥600W |
| Laser module life | 100000~200000 hours |

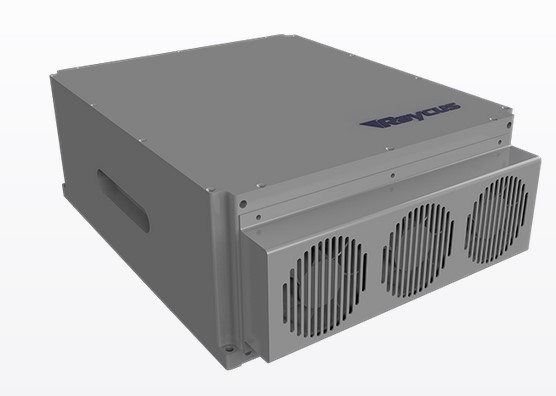

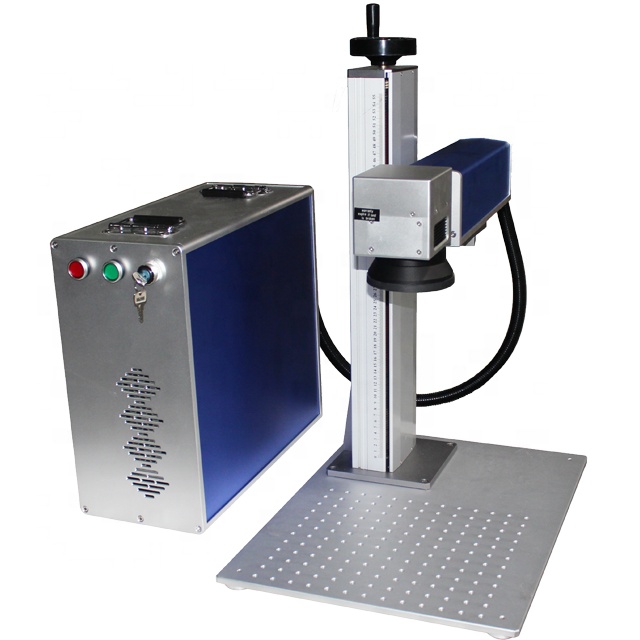

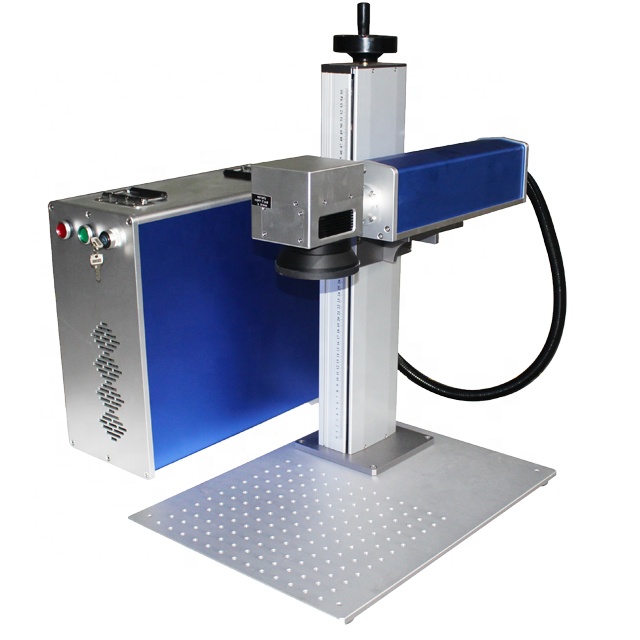

1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. Be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

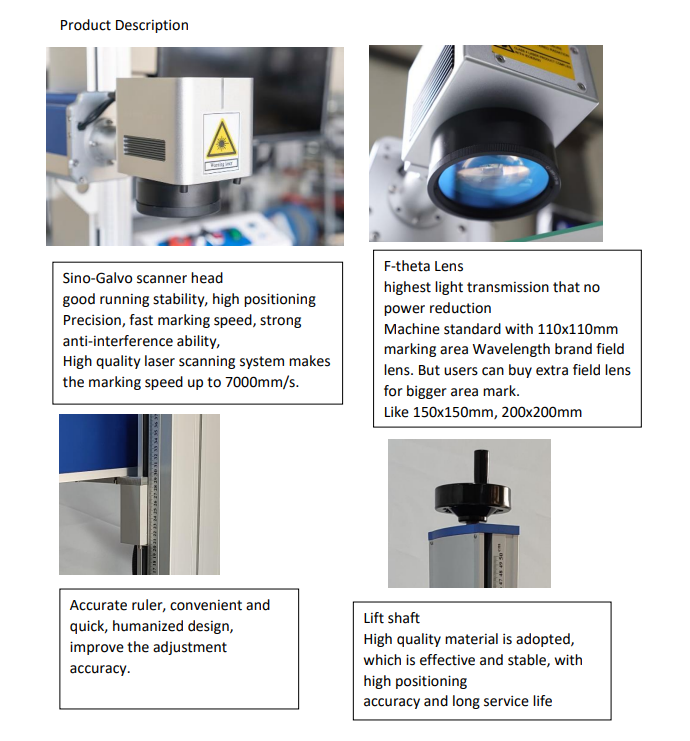

2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. High efficiency for photoelectric conversion, simple operation, Compact structure, support harsh working environment, no consumables.
5. This fiber laser marking machine is easy to take and easy to operate.

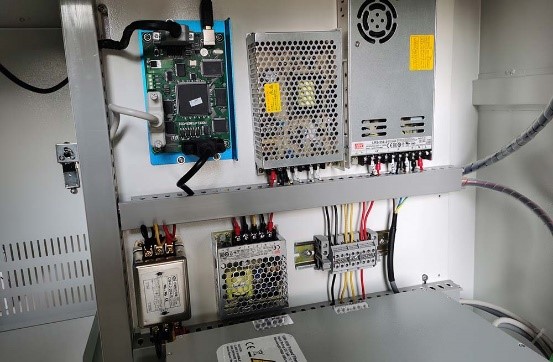

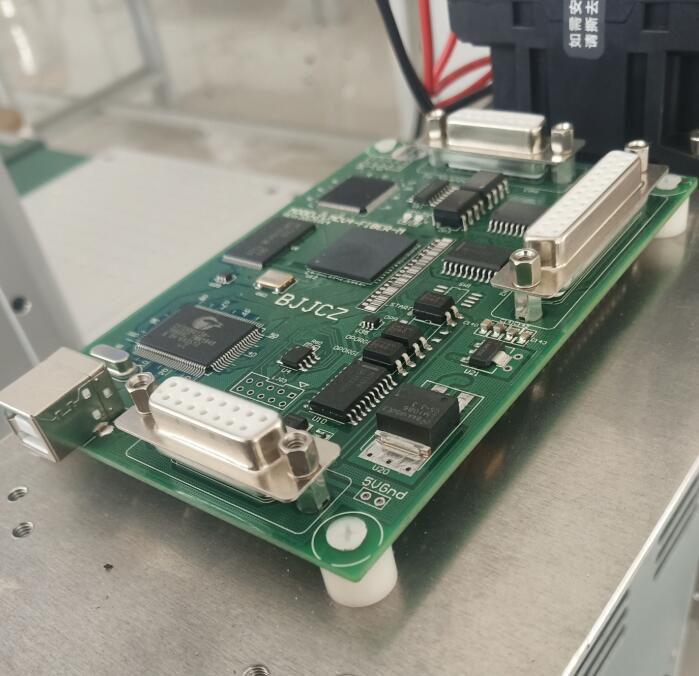

The control board and laser power supply are produced by high-quality manufacturers. Power supply for galvo head and control board features high efficiency and low working temperature.
Machine standard with air switch, emergency button, key switch, Laser button, Galvo button, USB 2.0 interface. Support online work, and support insert USB memory card offline work.

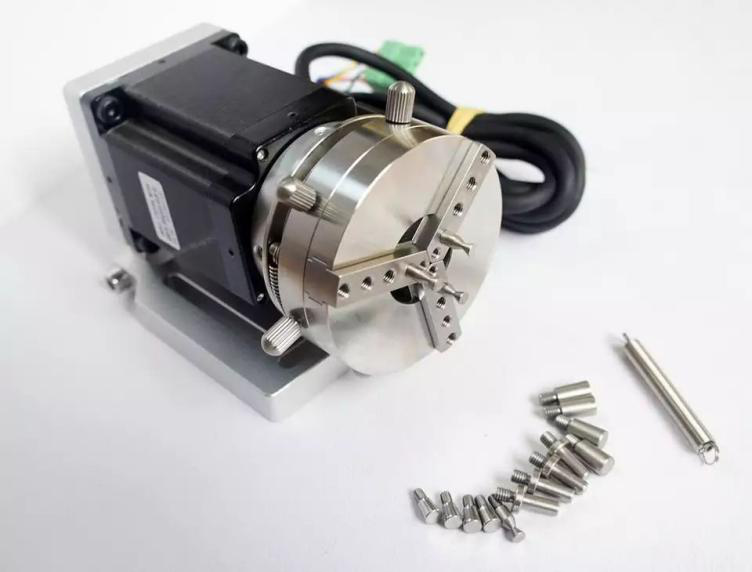

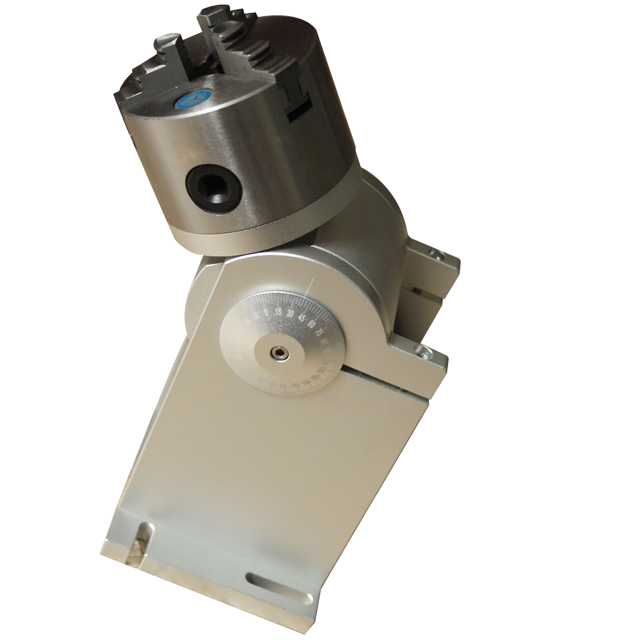

Optional rotary axis used for cylindrical and spherical objects to rotate the marker axis. The stepping motor is used for digital control, and speed is automatically controlled by the computer for a convenient, simple, safe, and stable operation.

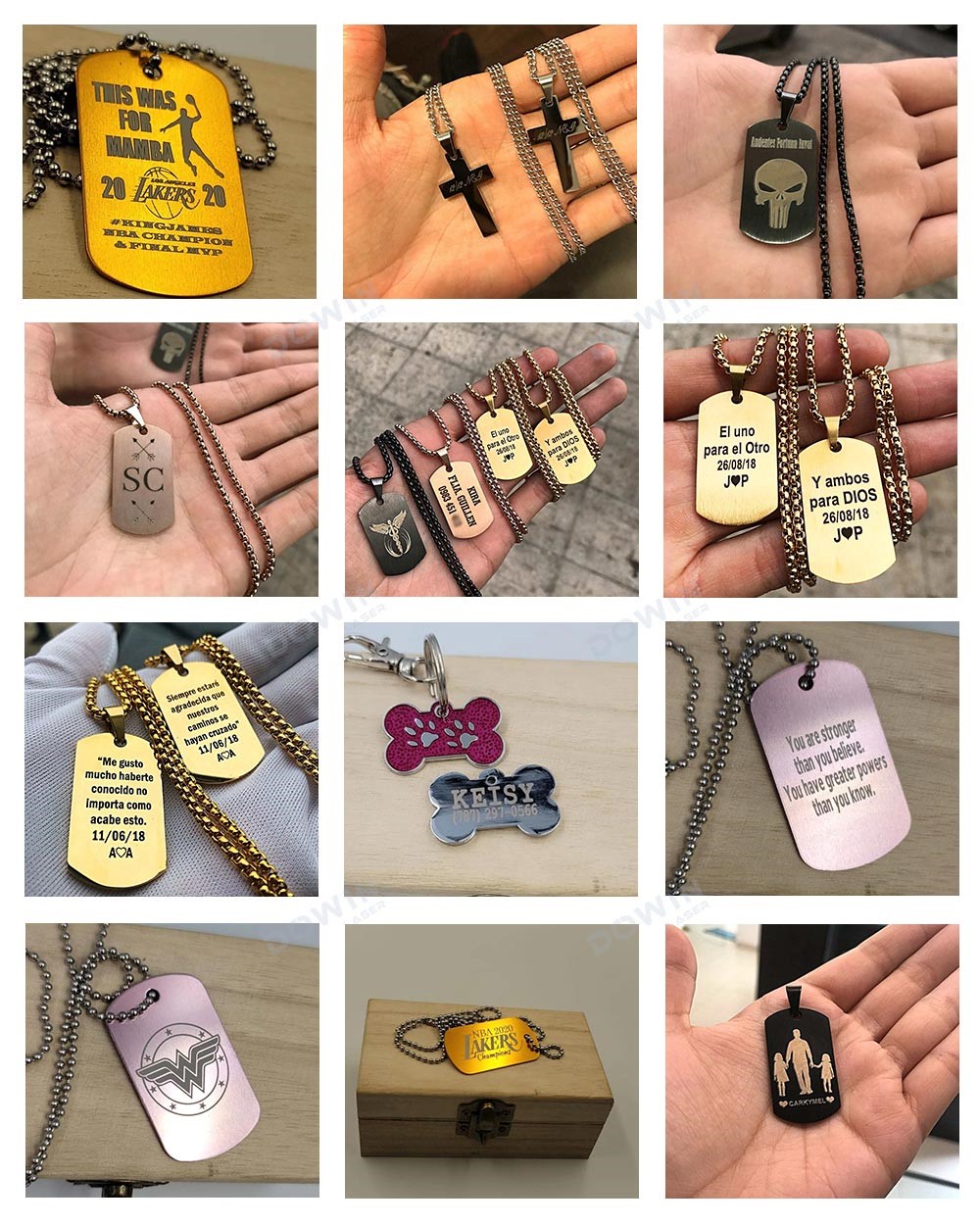

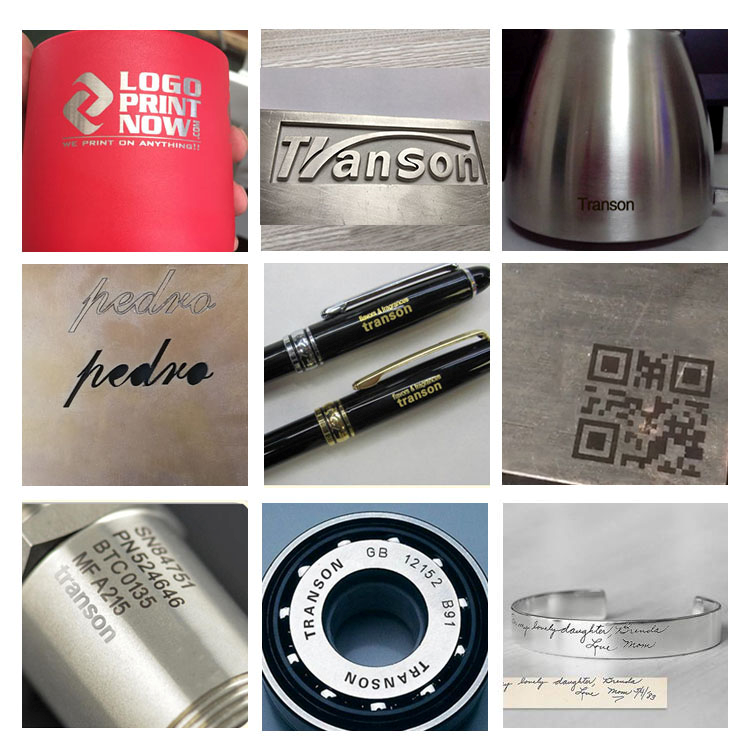

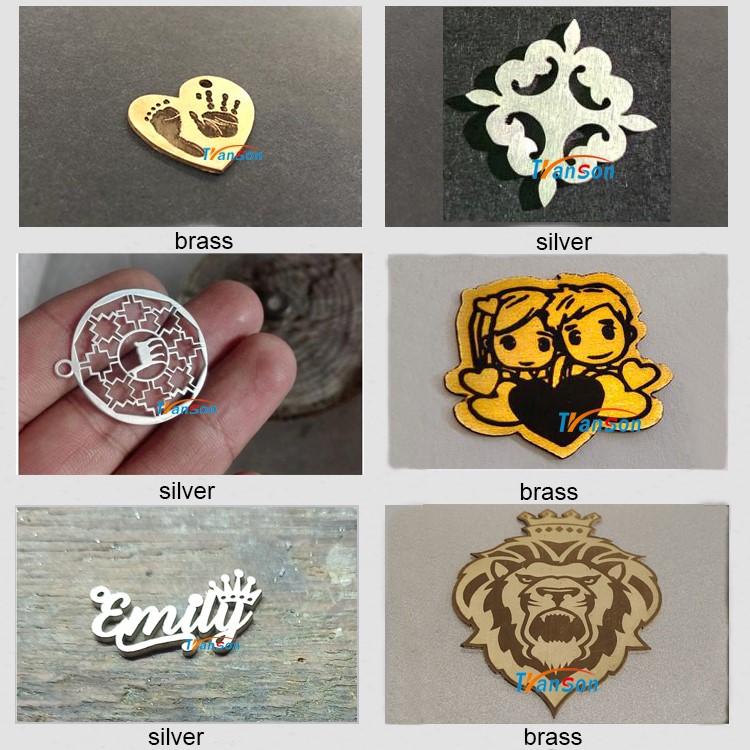

1. Metallic Materials: Gold, Silver, Titanium, Copper, Brass, Alloy, Aluminum, Steel, Manganese steel, Magnesium, Zinc, Stainless steel, Carbon steel, Mild steel, all kinds of alloy steel, Electrolytic plate, Galvanized sheet, rare metals, coated metal, anodized aluminum, and electroplated surfaces.
2. Non-Metallic Materials: Non-metallic coating materials, electroplating materials, industrial plastics, Hard plastic, rubber, ceramics, marble, granite, ABS, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, and unsaturated polyester resin materials.
Applicable Industries: Electronic components, integrated circuits, mobile communications, medical apparatus, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelry accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, packing containers, and other fields requiring higher precision and smoothness.

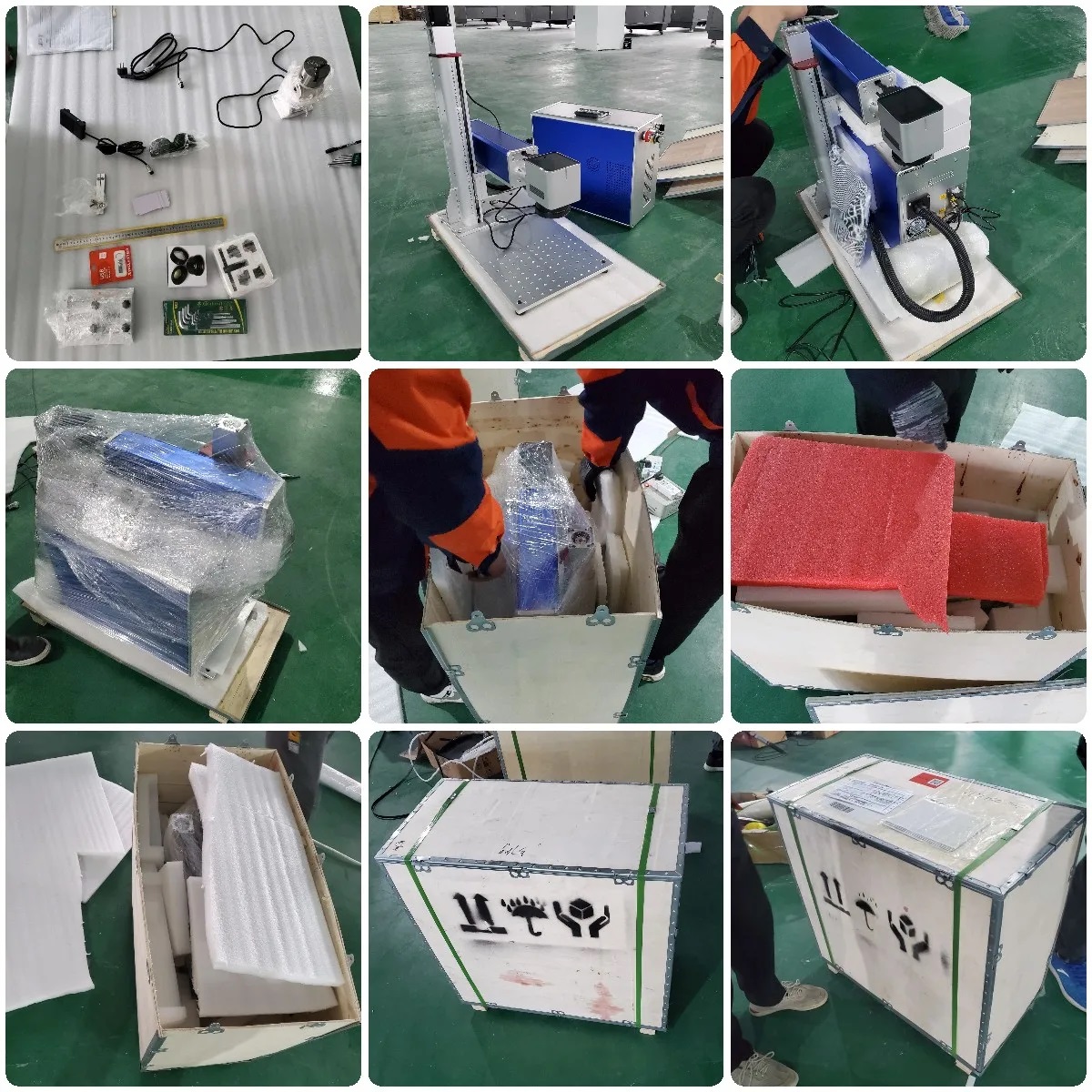

Laser Marking Machine packed securely in a durable Wooden Case to ensure damage-free transit.
Included Accessories: Foot Switch, Positioning bar, USB Flash Drive, USB Cable, Testing Aluminum Sheet, Ruler, Power Cable, Inner Hexagon Wrench.
The product components have successfully obtained numerous patents and certifications, passing European CE, RoHS, FCC, REACH, MSDS, US Food and Drug Administration, TUV Rheinland, Swiss SGS testing, and ISO9001 quality management system certifications.
