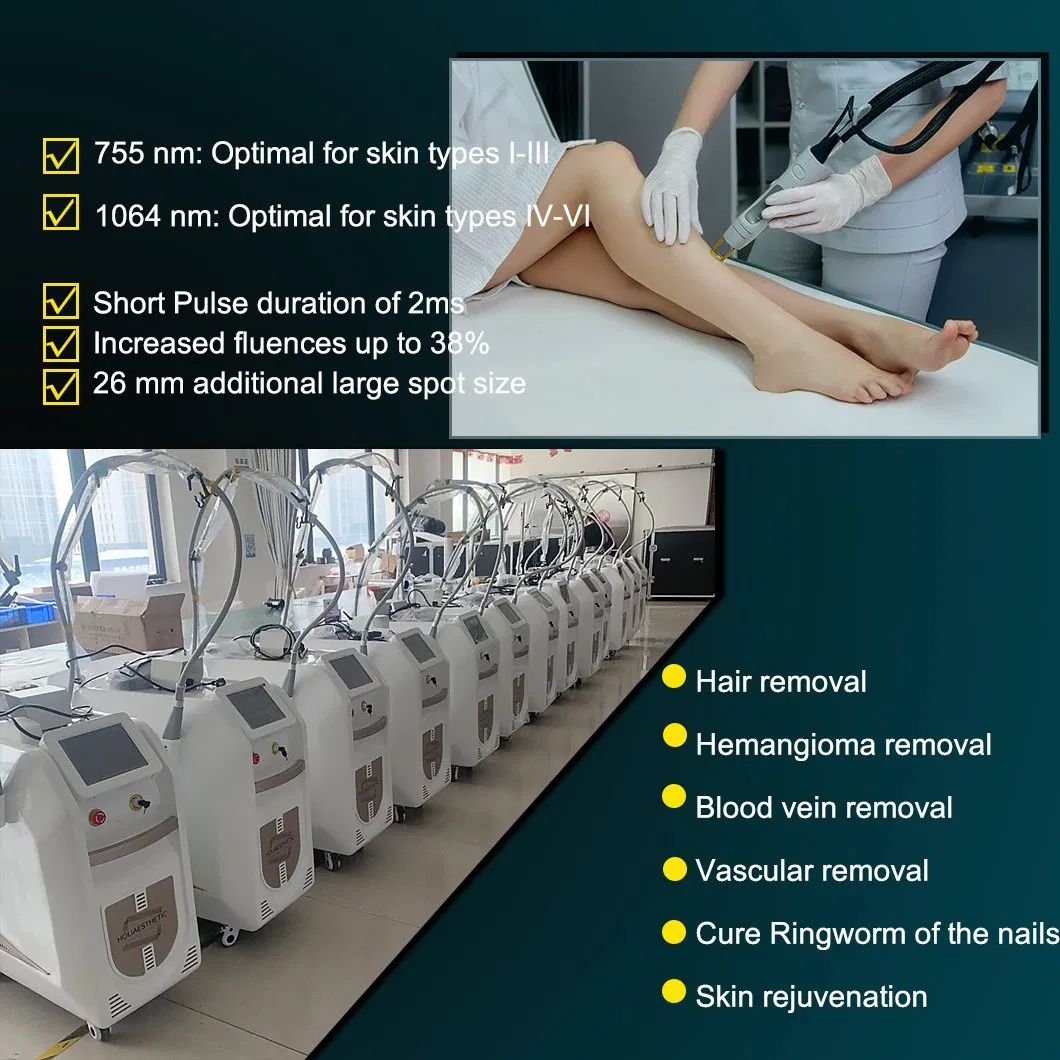

1. Dual waves 1064nm & 755nm Nd:YAG. Highly advantageous for removing hair across both light skin and dark skin tones.

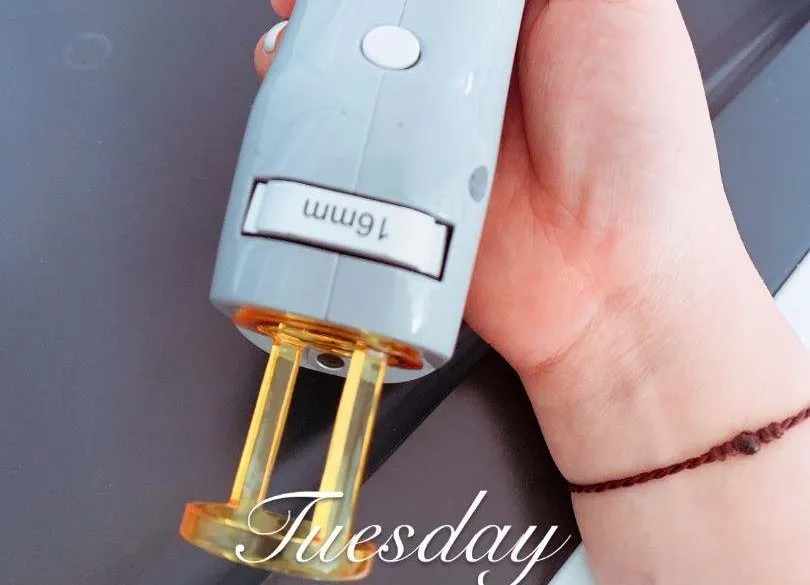

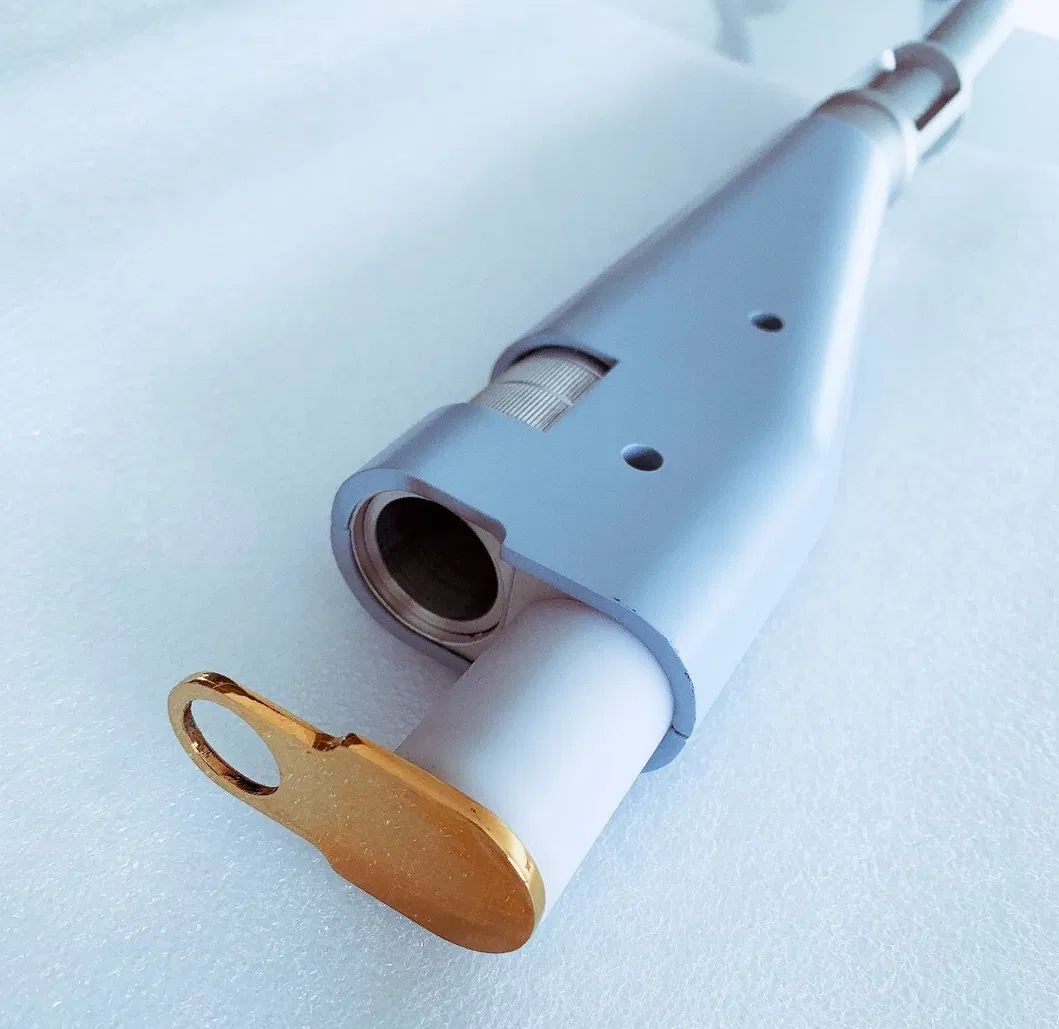

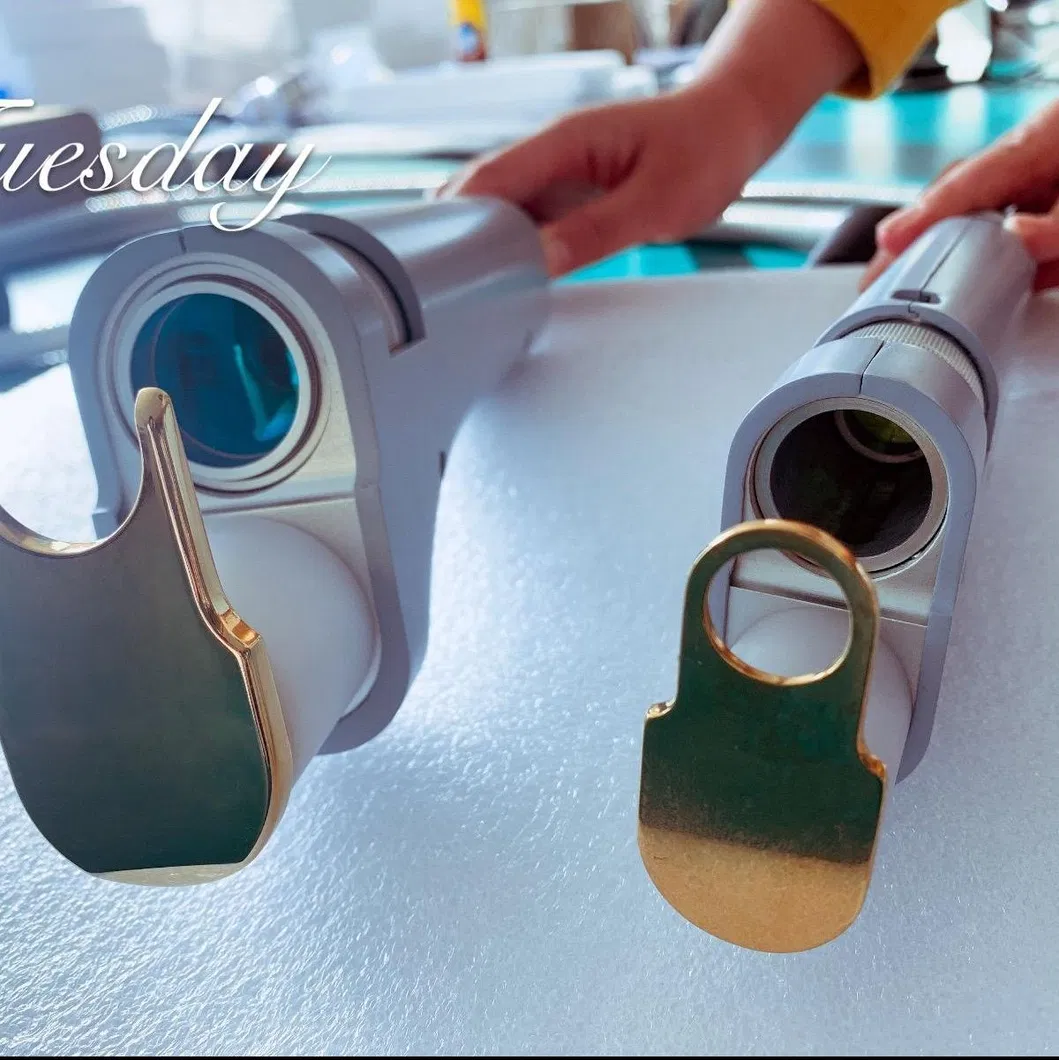

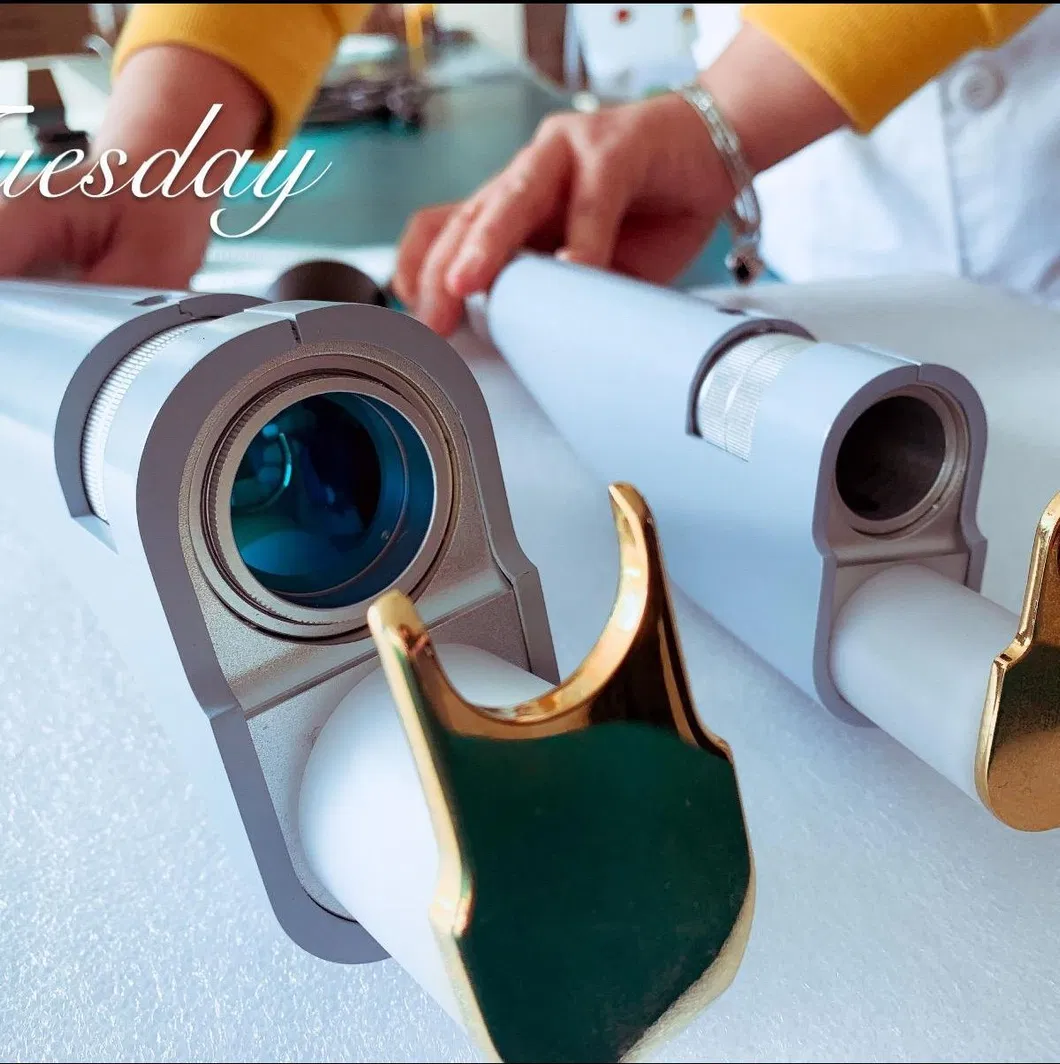

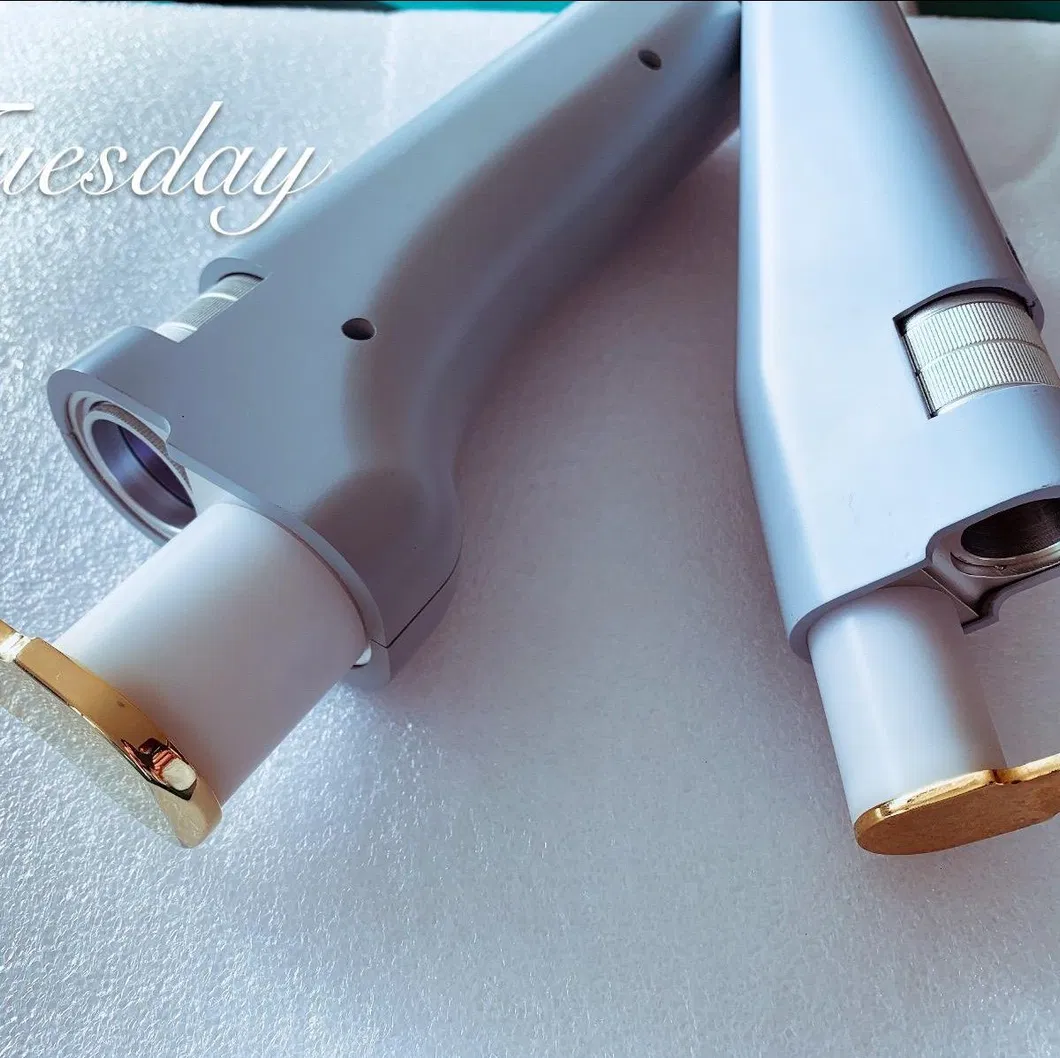

2. Medical handle with adjustable spot sizes: 1-10mm and 10-20mm. An optimal face & body hair removal solution.
| Model | EL200B |
| Technology | Q Switched Nd:YAG Alexandrite Fiber Optic Laser |
| Wavelength | 755nm / 1064nm |
| Laser Device | Imported Fiber Laser |
| Laser Power | 3000W (5000W) |
| Pulse Width | Nd:YAG 1064nm (0.1-200ms) | Alexandrite 755nm (0.5-200ms) |
| Maximum Energy Per Pulse | Nd:YAG 1064nm (100J) | Alexandrite 755nm (30J) |
| Maximum Average Power | Nd:YAG 1064nm (110W) | Alexandrite 755nm (32W) |
| Pulse Repetition Rate | Nd:YAG 1064nm (0.5Hz-50Hz) | Alexandrite 755nm (0.5Hz-20Hz) |

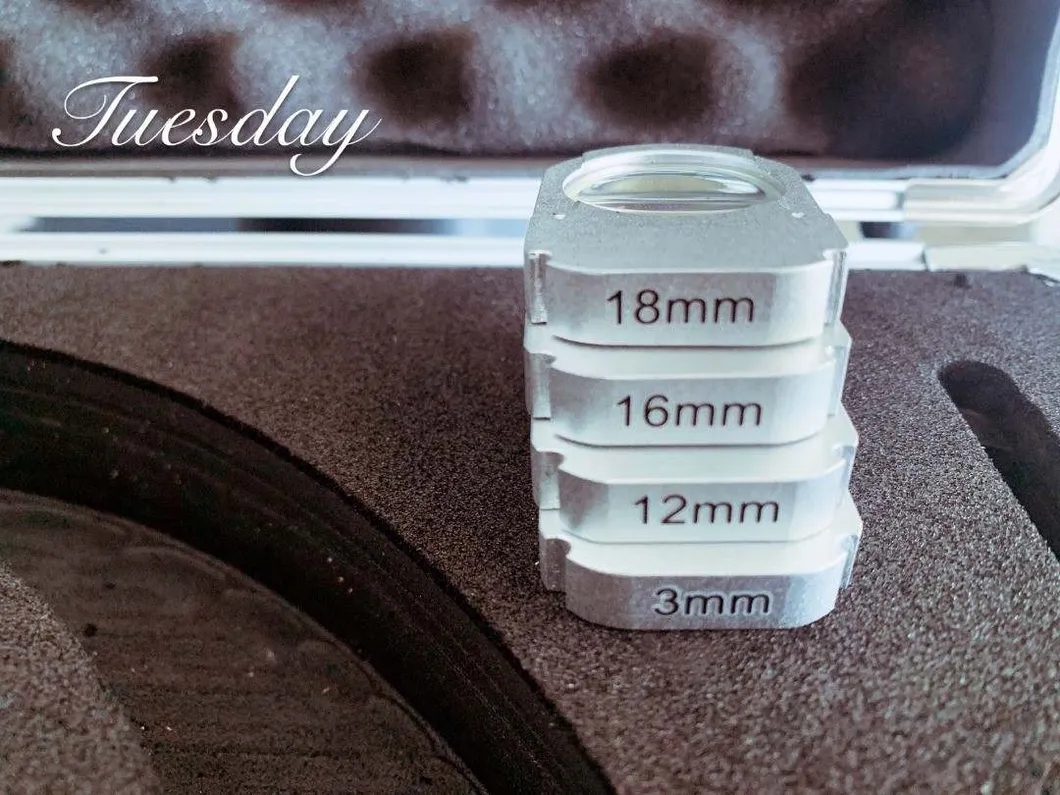

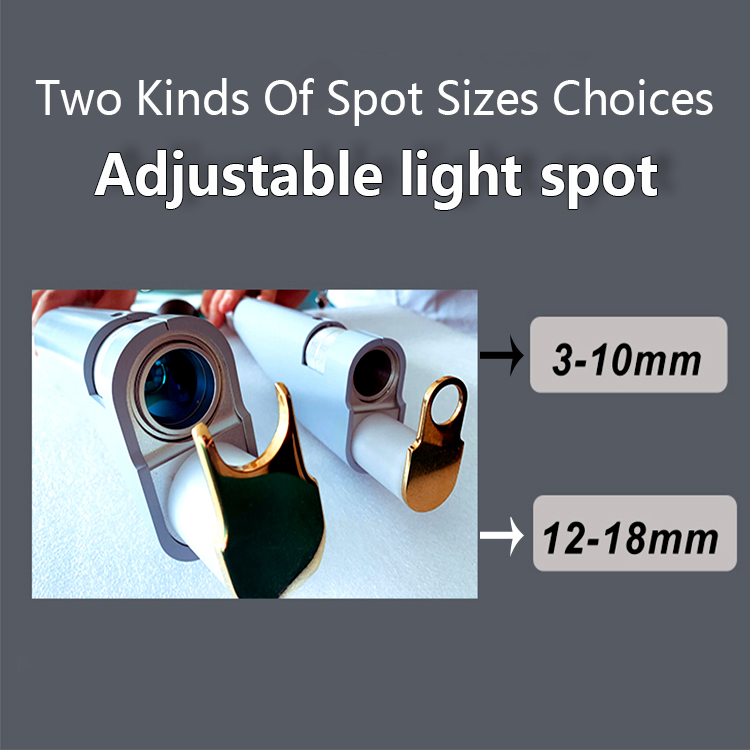

| Spot Size | 3-10mm, 12-18mm (Optional: 3mm, 6mm, 9mm, 12mm, 16mm, 18mm, 24mm) |
| Rated Power Input | 4.5kVA |
| Cooling System | Air cooling + gem arm cooling |
| Laser Tools | Scanning type |

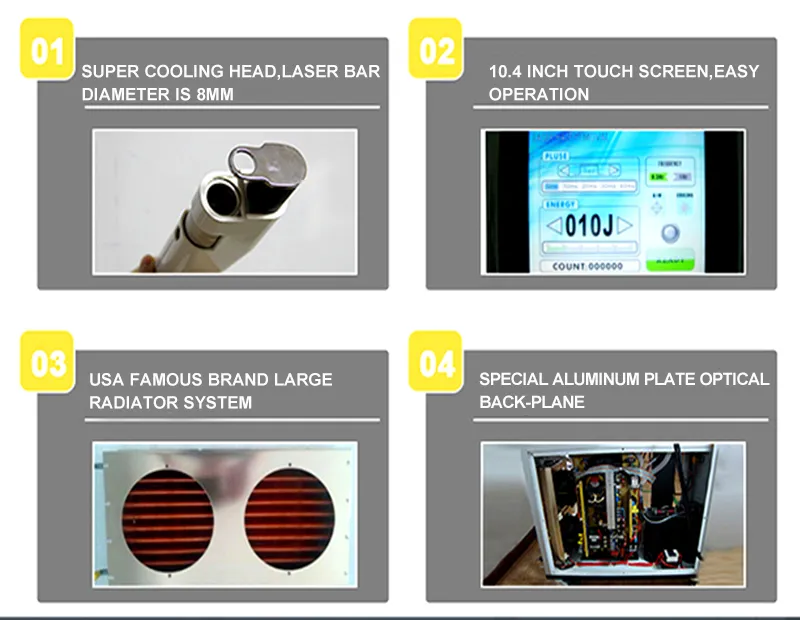

| Control Panel | Touch Screen |
| Certificate | CE, ISO13485, ROHS |

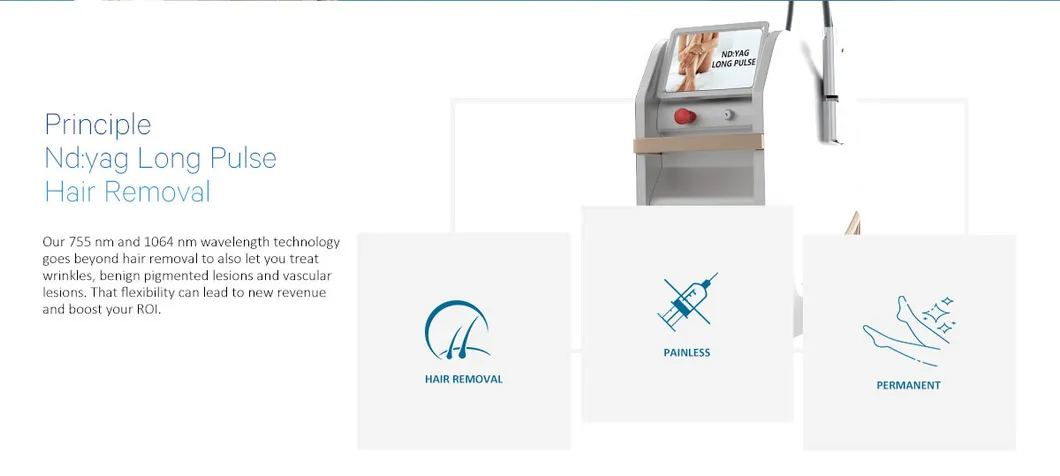

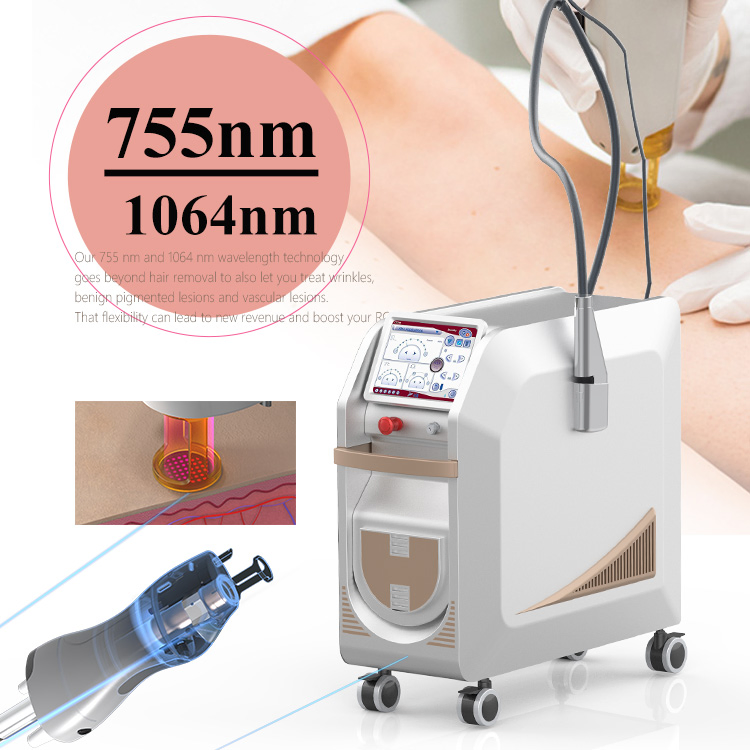

Model EL200B Pulse Width Adjustable Nd:YAG/ALEX laser therapy instrument features working wavelengths of 1064 nm & 755 nm. Engineered for professional hair removal, which stands as the world's high-quality hair removal technology. Additionally, it is capable of treating onychomycosis and varicose veins.
The wavelengths of 1064nm and 755nm Nd:YAG laser consist of invisible light. In clinical operation, visible light is adopted to scan the targeted tissue first; this visible guide light marks the precise target for the Nd:YAG laser emission. This instrument utilizes a red diode laser as the aiming beam.
Elimination of unwanted hair using the Alexandrite laser is based on the mechanism of thermokinetic selectivity, minimizing pain sensations and potential side effects. The laser emits a beam invisible to the human eye that penetrates deep into the skin without causing surrounding damage. The hair follicle selectively absorbs the laser ray. Through a process of intense heating at very high temperatures, the roots and the surrounding germinative cells responsible for regrowth undergo denaturation. This results in the progressive and permanent reduction of hair without provoking skin irritation or damage.
1) Energy Setting: Adjusts single pulse energy. Under 1064nm, energy is adjustable between 0.1~80J. Under 755nm, energy is adjustable between 0.7~30J. Settings can be configured in both "standby" and "ready" modes.
2) Frequency Setting: Under 1064nm, frequency is adjustable between 0.1~50Hz. Under 755nm, frequency is adjustable between 0.5~20Hz. Frequency can be adjusted under both ready and standby conditions.
3) Wavelength Selection & Pulse Width: Under 1064nm, the pulse width is adjustable between 0.1~200ms. Under 755nm, the pulse width is adjustable between 0.5~20ms.
