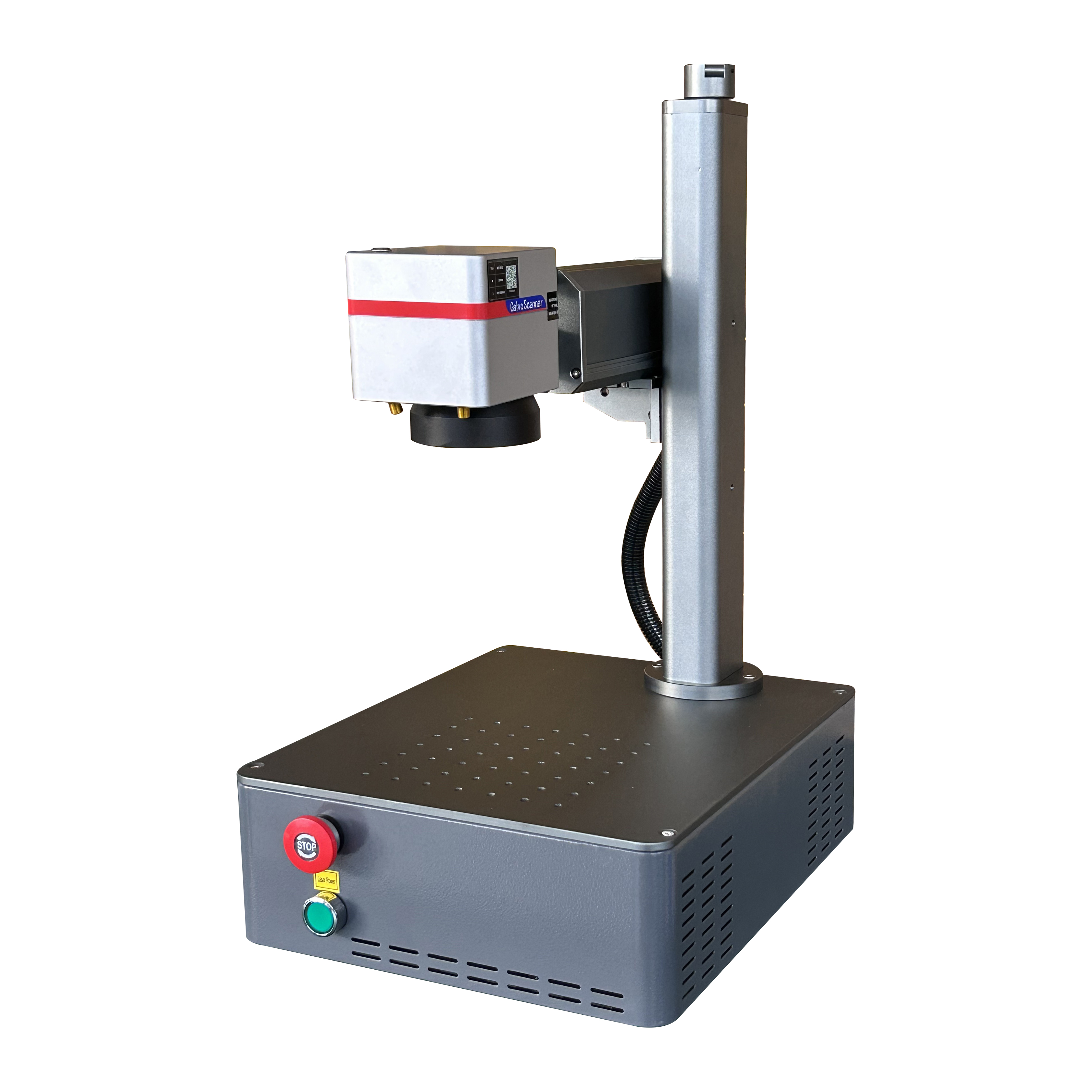

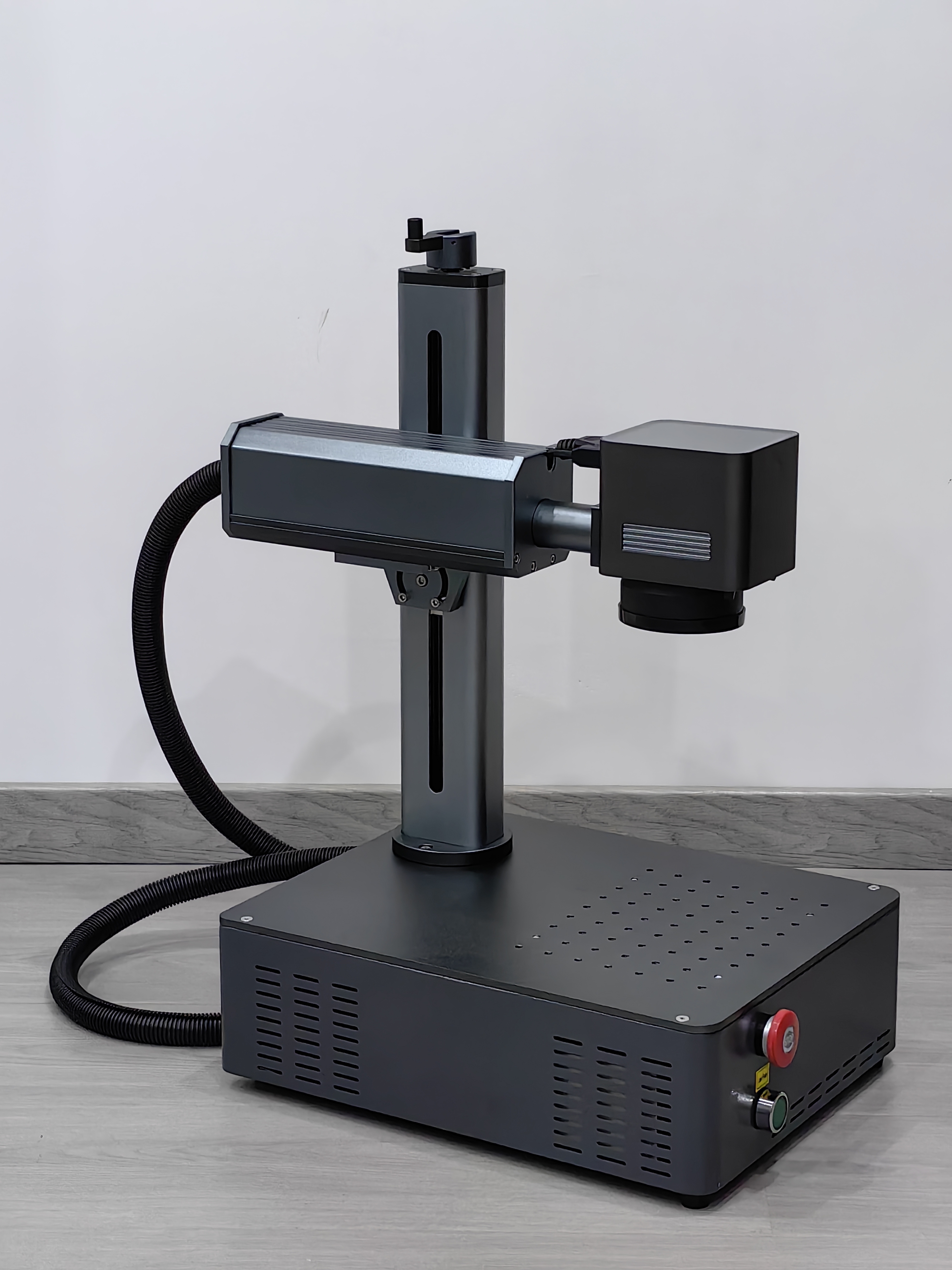

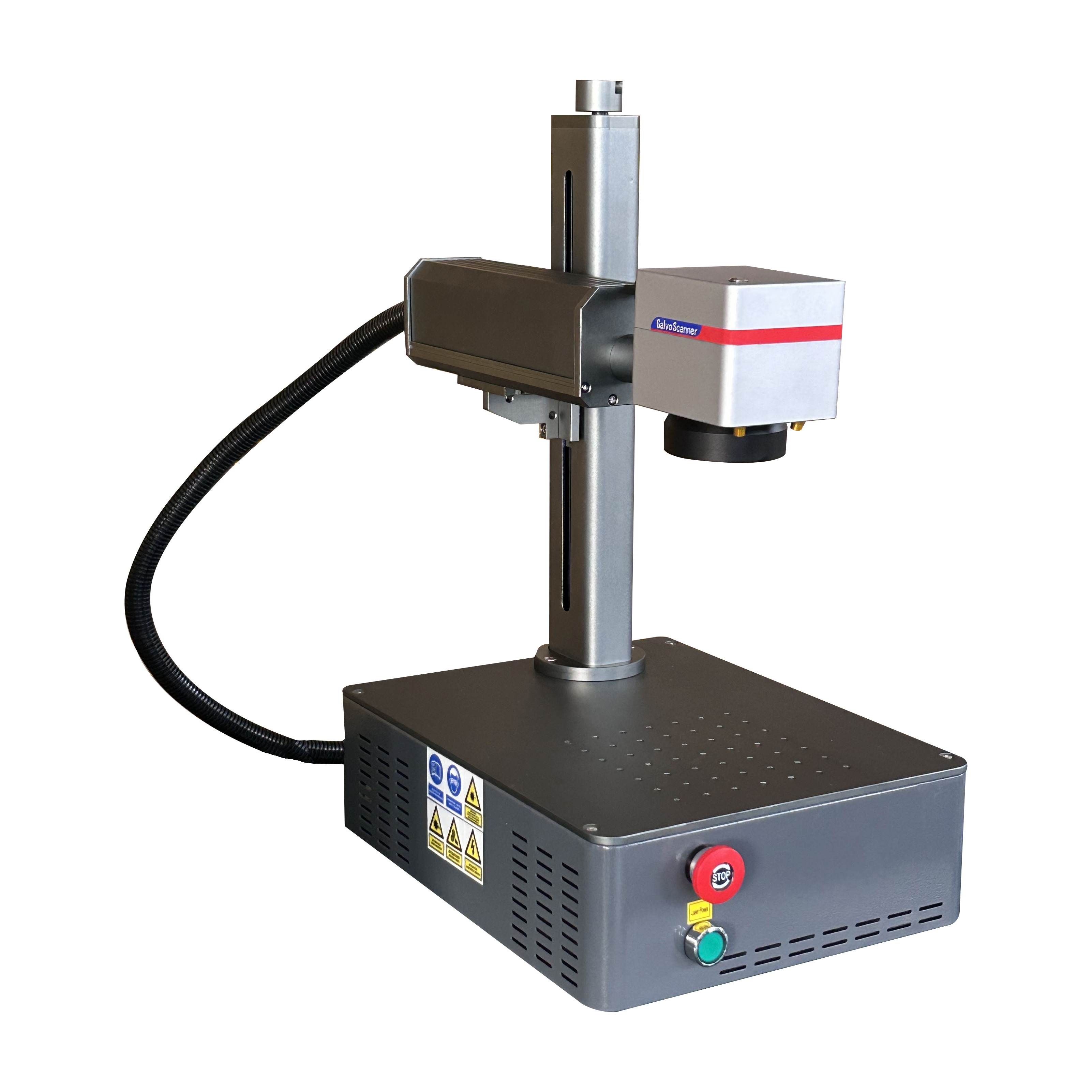

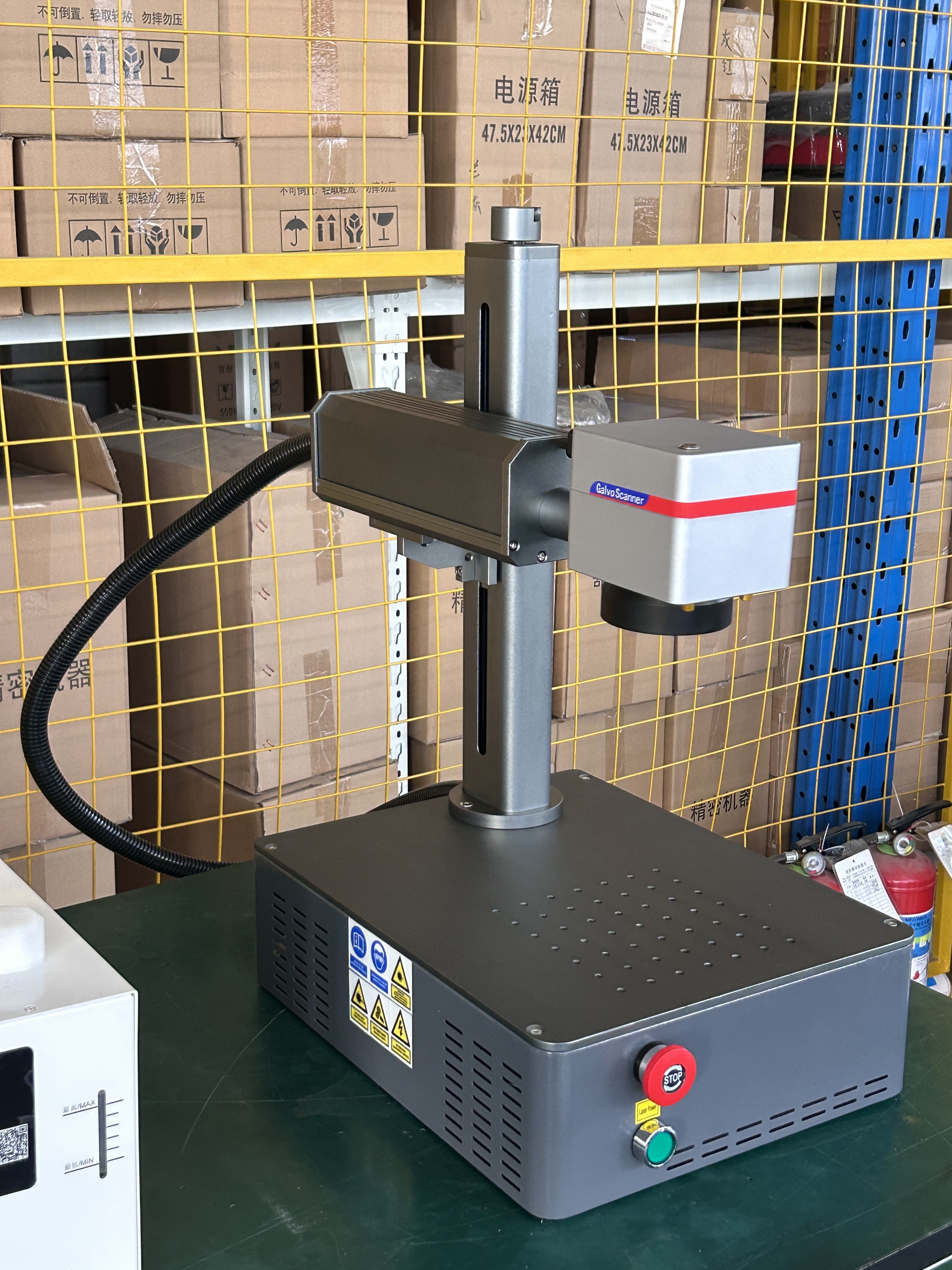

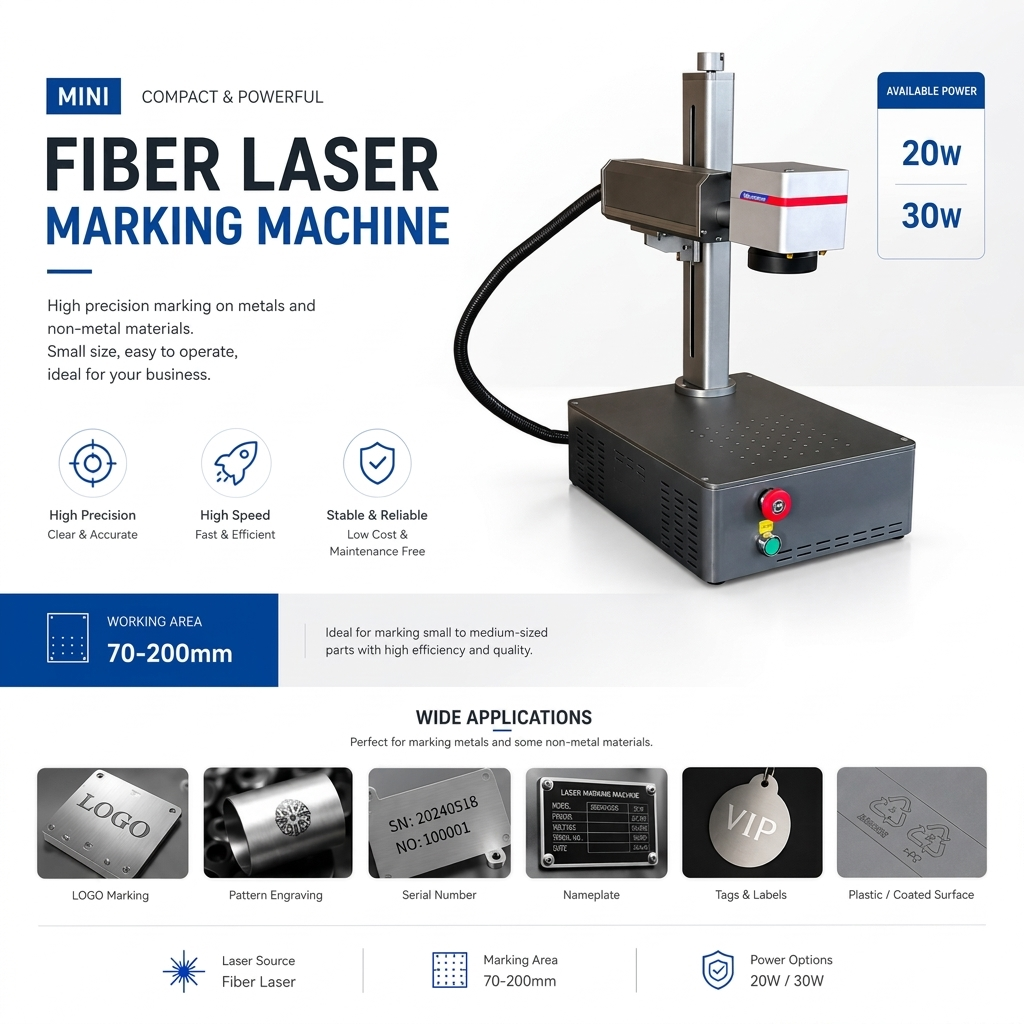

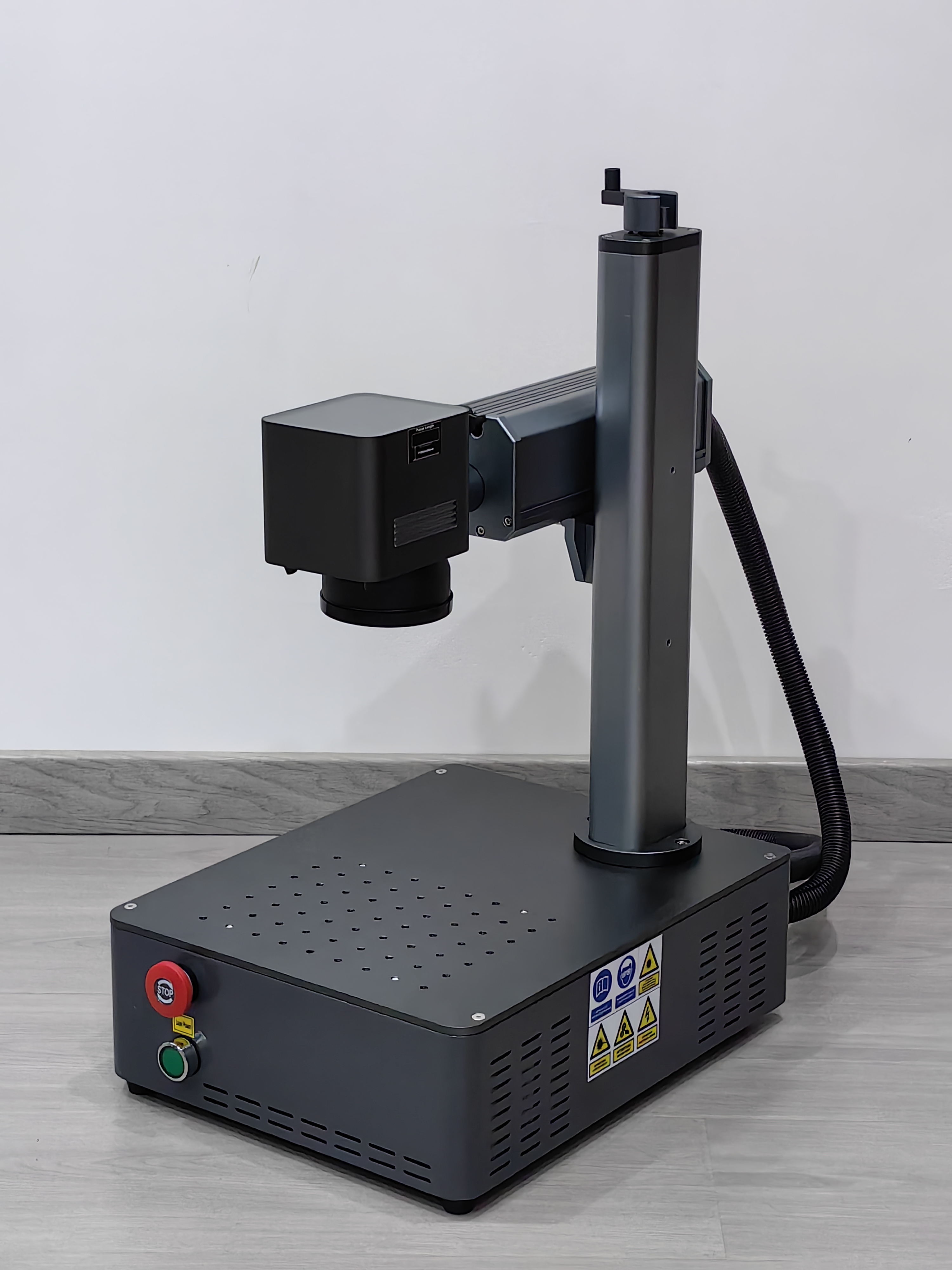

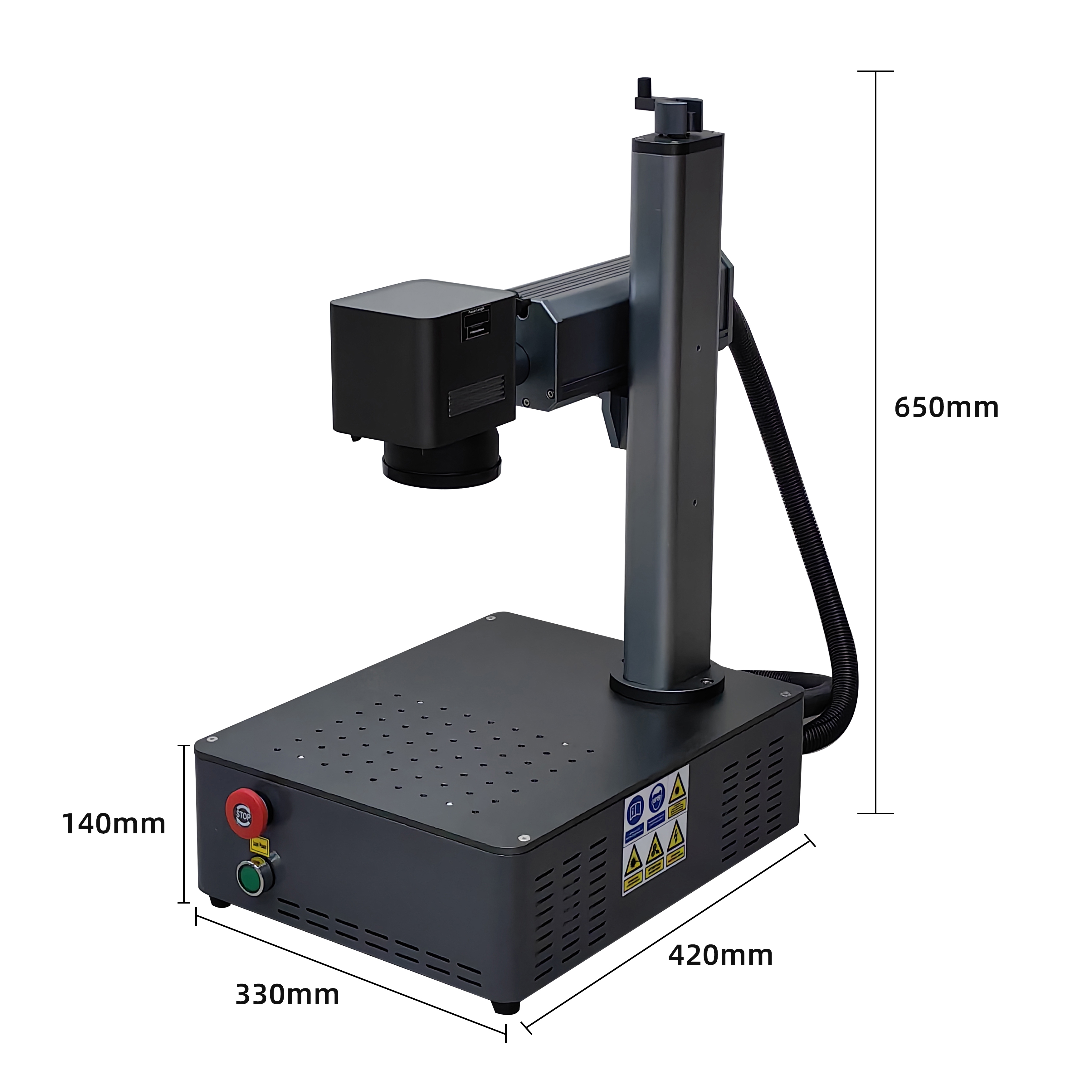

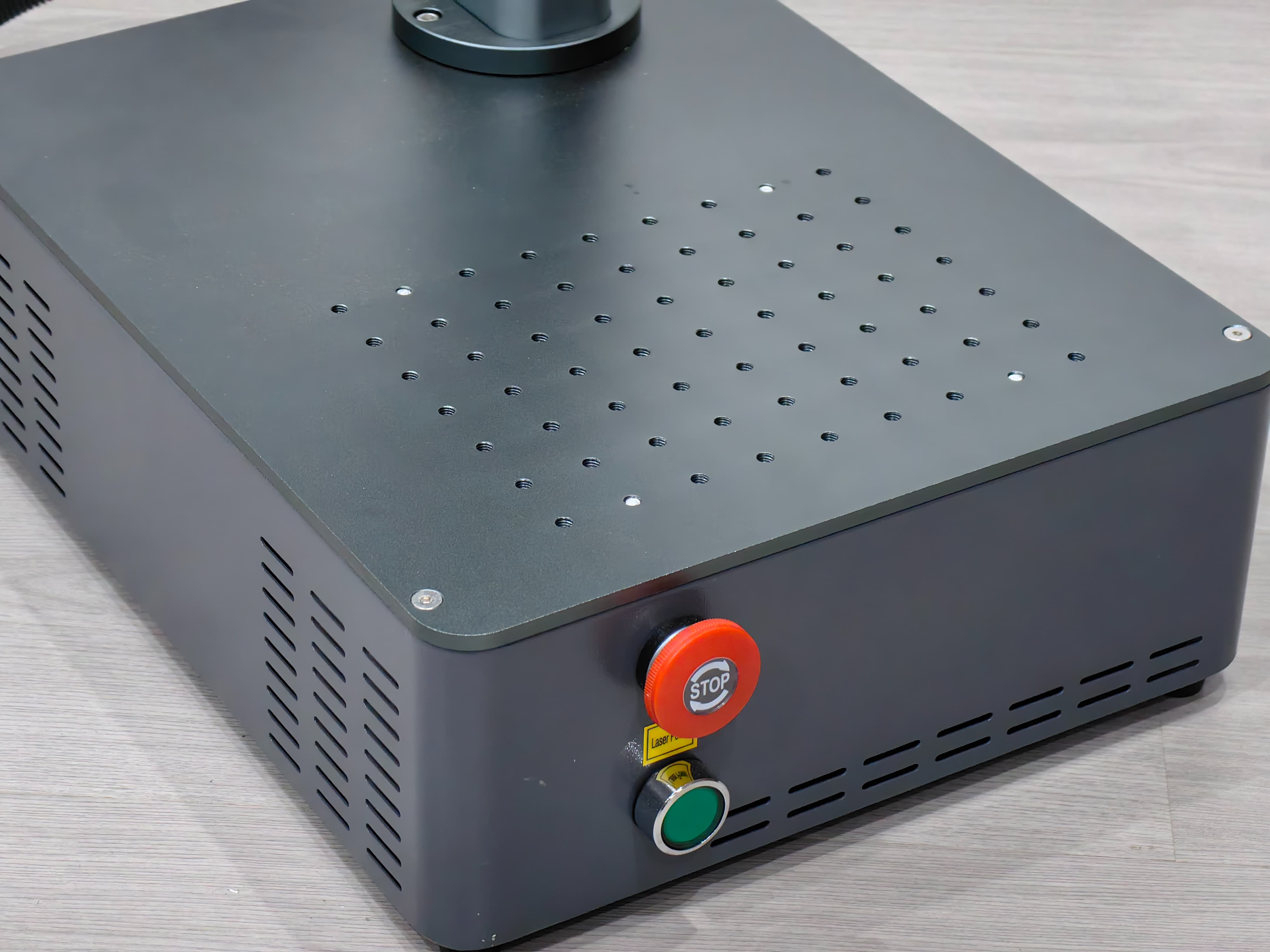

This newly launched mini fiber laser marking machine is a lightweight, space-saving solution built for standard metal and plastic engraving applications. With a net packaged weight of only 19KG, it’s one of the most portable and accessible machines in its class.
Available in 20W and 30W power configurations, this compact system delivers stable performance for day-to-day marking needs — making it an excellent fit for small workshops, mobile use, or entry-level production setups.
Already enjoying strong demand in markets such as South America and the Middle East, this model has become a favorite among distributors and resellers seeking a cost-effective solution for high-turnover sales channels.
📢 We welcome inquiries from distributors. Competitive pricing is available for bulk orders!!!

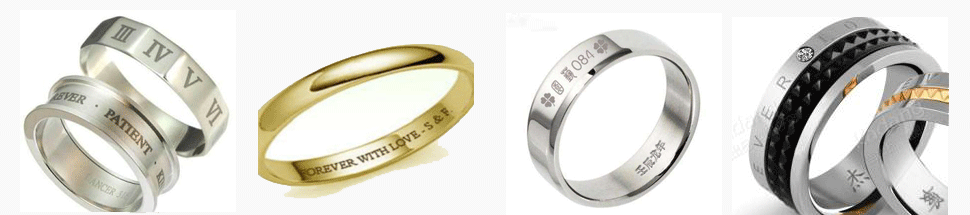

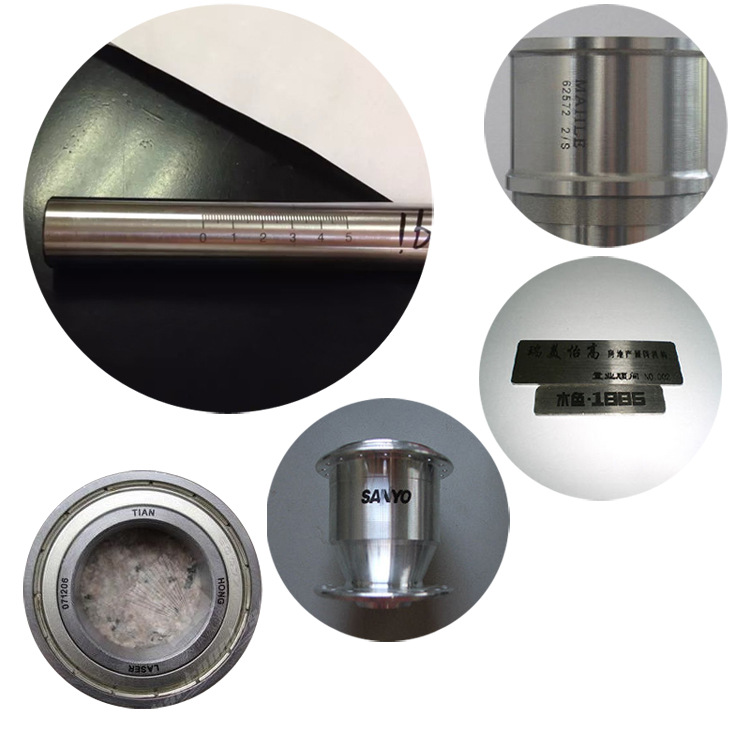

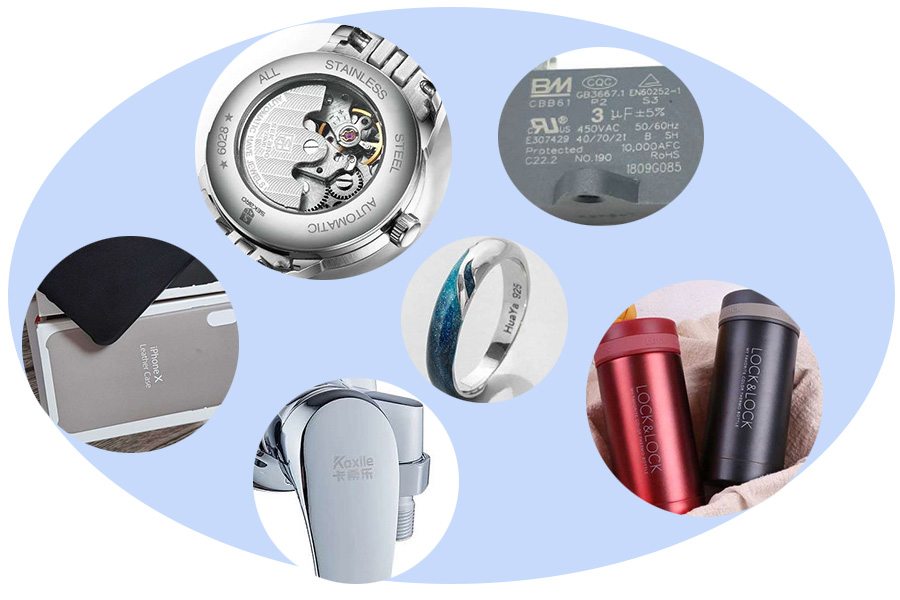

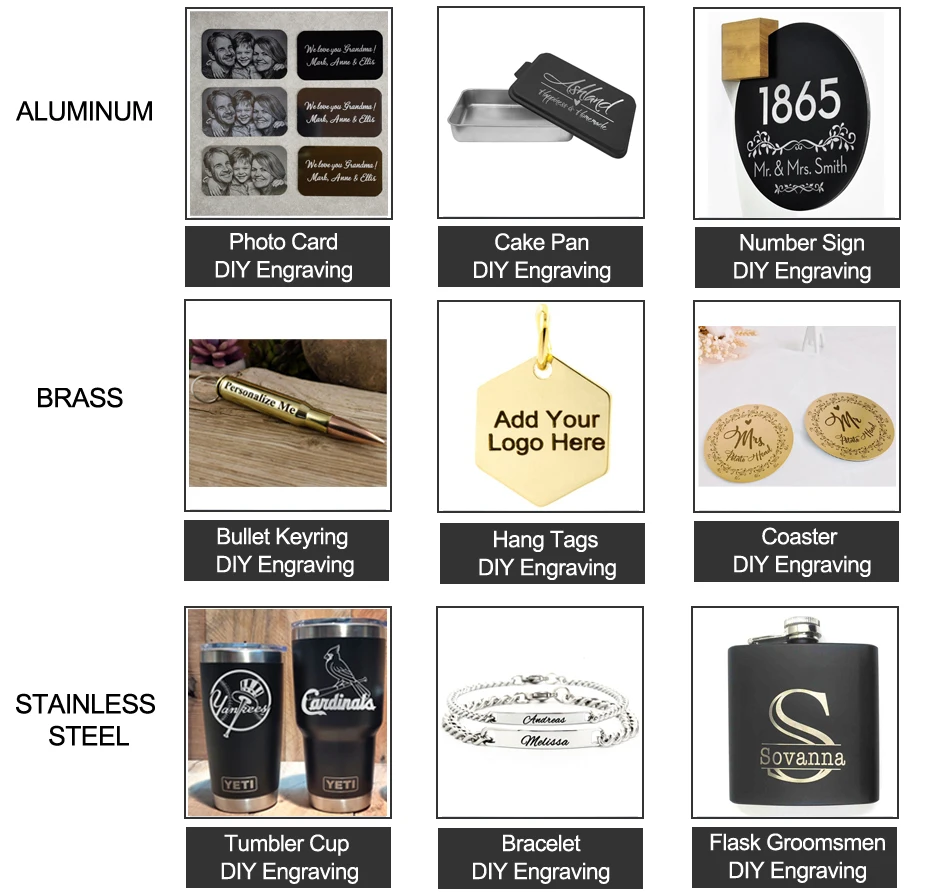

Applicable Materials: Metal, stainless steel, gold, silver, copper, carbon steel, alloy, alumina, some plastic, PVC, ABS, etc.
Great for small business!

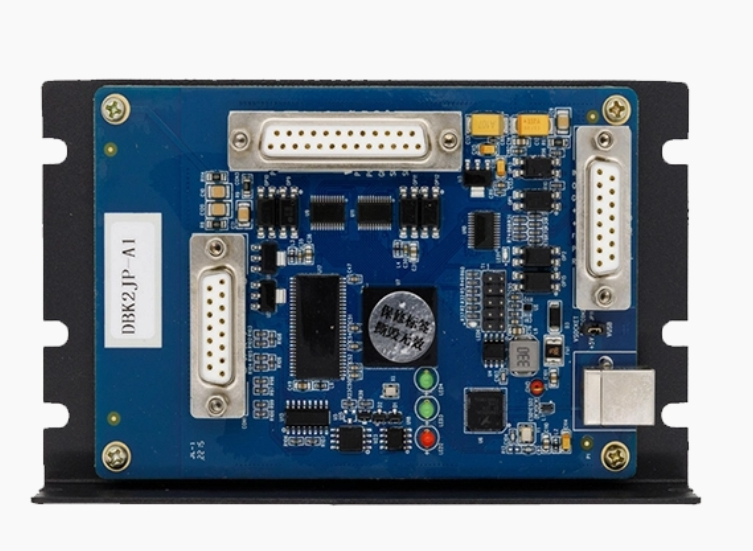

BSL control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast.

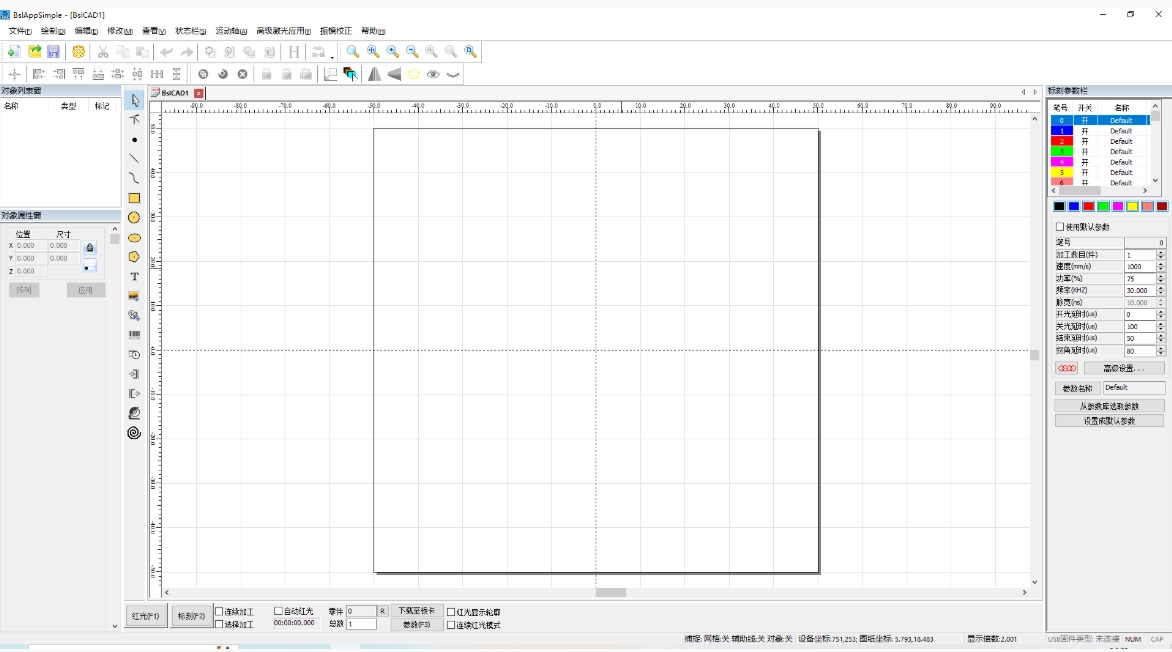

The software is simple, feature-rich and supports multiple languages.
| Model | RF-F-20W / RF-F-30W |
| Laser output power | 20W / 30W |

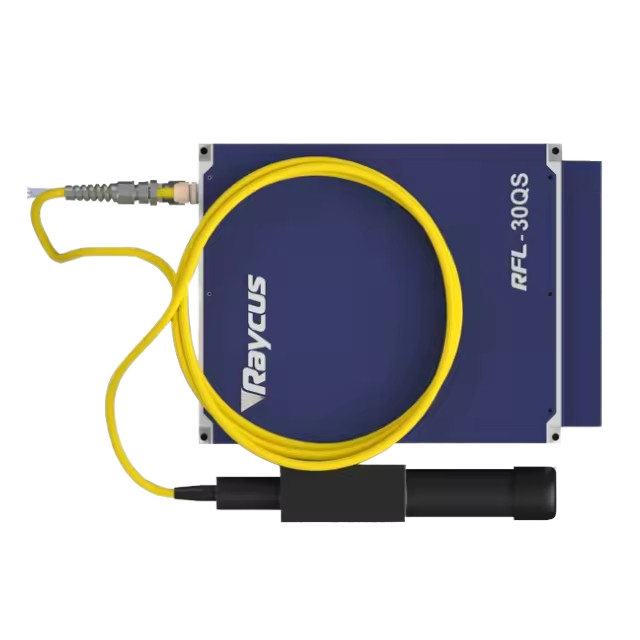

| Laser source band | MAX |
| Laser wavelength | 1064nm |
| Laser beam quality | <1.6 |
| Max pulse energy(mj) | 1 |
| Pulse duration(ns) | 90-110@20KHZ (20W) / 120-150@30KHZ (30W) |
| Pulse repetition rate range(kHZ) | 20-60 (20W) / 30-60 (30W) |
| Min. Character size | 0.2mm |
| Repetition Accuracy | <8μrad |
| Power consumption | 170W |
| Cooling type | Air cooling |
| Marking area | 70*70-200*200mm |
| Max working speed | 8000mm/s |
| Laser spot (110x110) | 25.4μm |
| Controller | Computer with marking software |
| Graphic Format Supported | AI, PLT, DXF, BMP, JPG, PNG, Dst, Dwg, LAS, DXP |
| Mode of Operation | Pulsed |
| Certification | CE |
| Warranty | 2 years |
| Supply voltage | AC110V 60HZ / AC220V 50HZ |
| Focus type | Double red light |

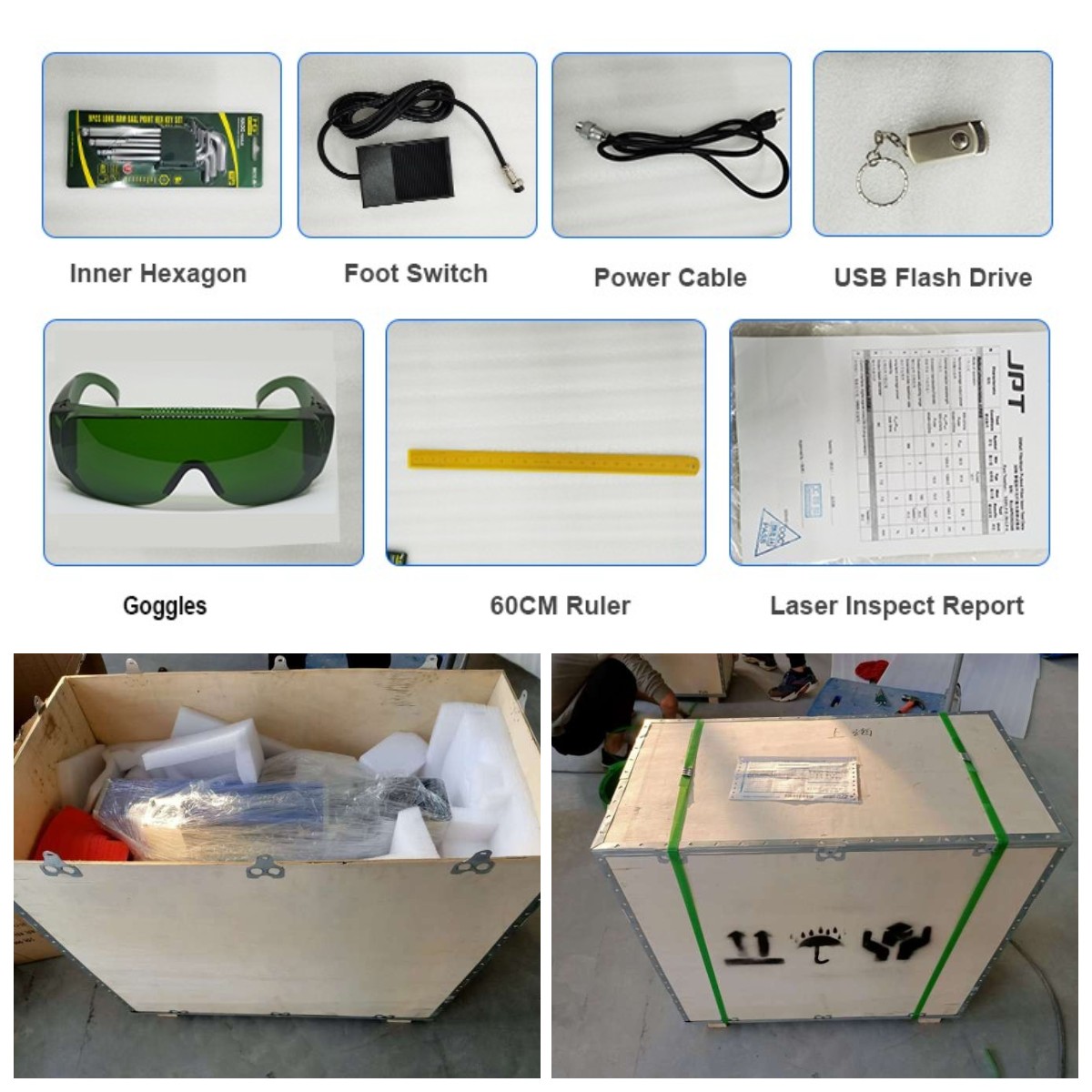

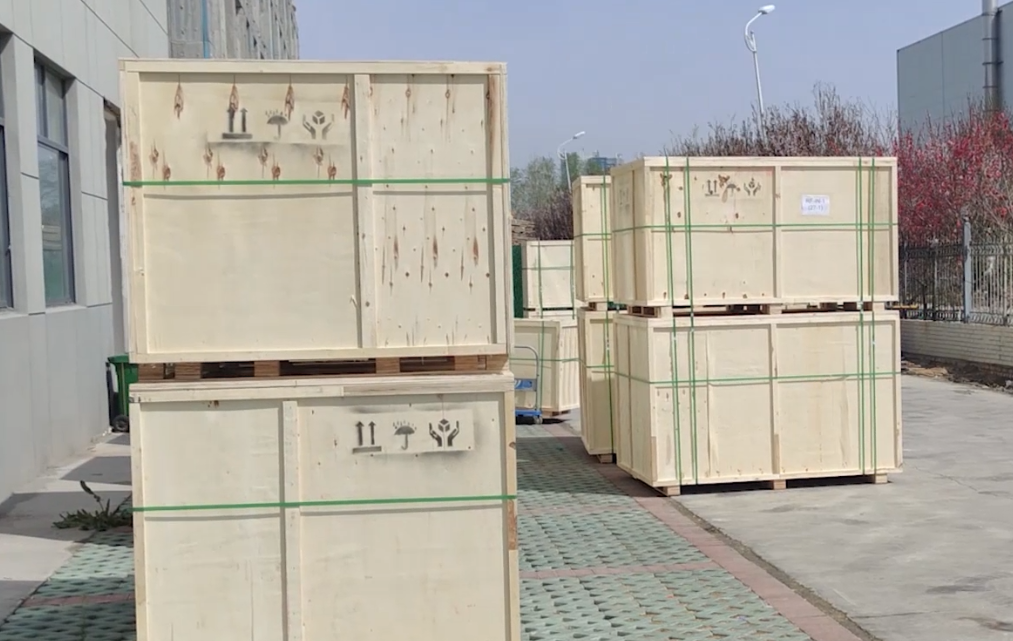

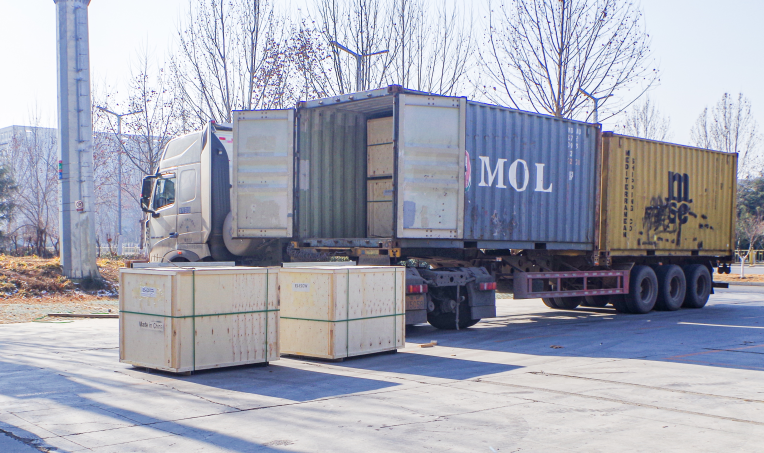

Package Construction: waterproof + film pearl foam + wooden case
